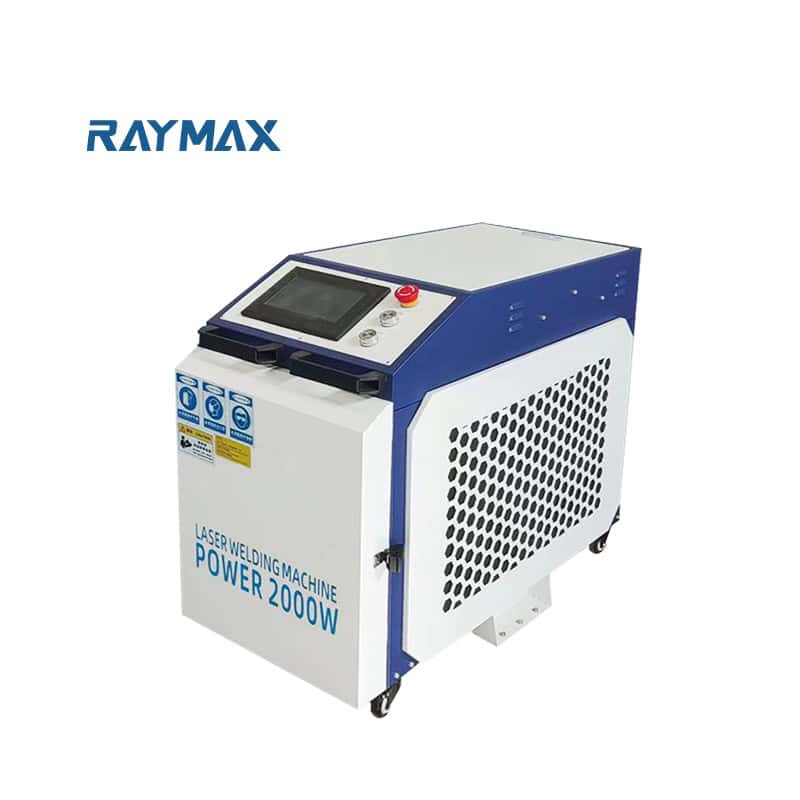

Handheld Fiber Laser Welding Machine

5-10x Faster Welding Speed
Send Samples Today —— Free Welding Test!

Easy to Use, Zero Experience Needed
One-Step Welding, No Need For Secondary Grinding
Perfect for Complex Welds & Multiple Materials:
Stainless Steel, Carbon Steel, Galvanized Steel, Aluminum, Copper (Thickness: 0.3-6mm)
No Consumables, Beautiful Welds – No Deformation, No Blackening
Lightweight Handheld Laser Head, Weld Without Fatigue
High Efficiency, High Success Rate

1-year Warranty
Global Transportation

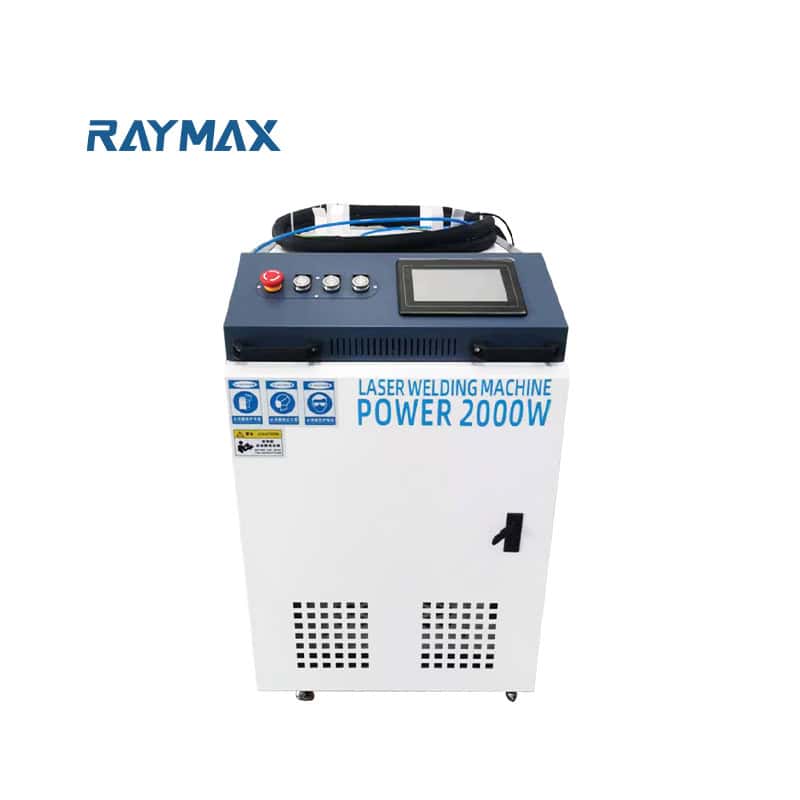

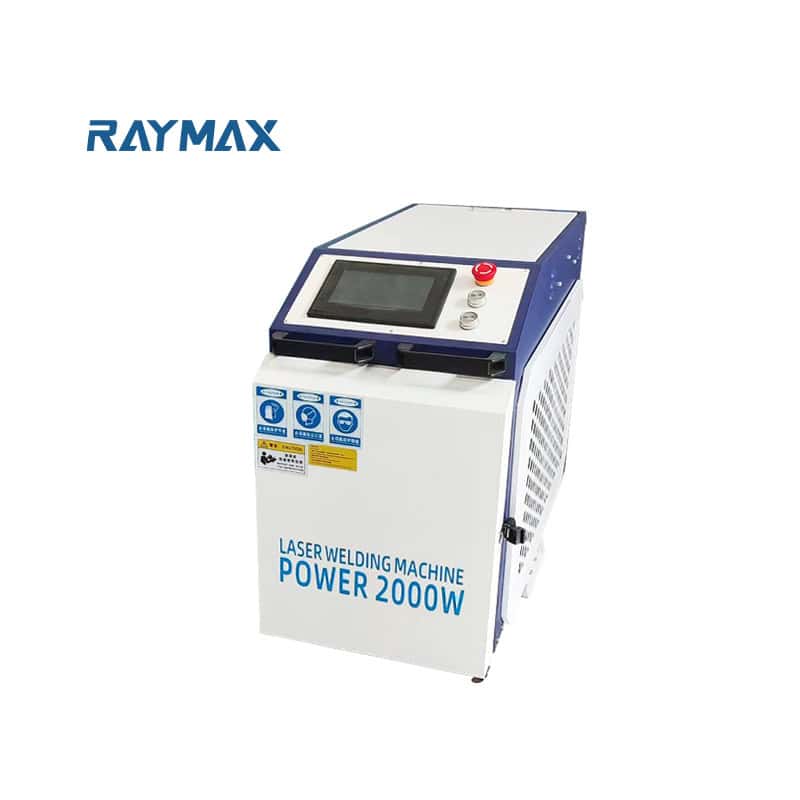

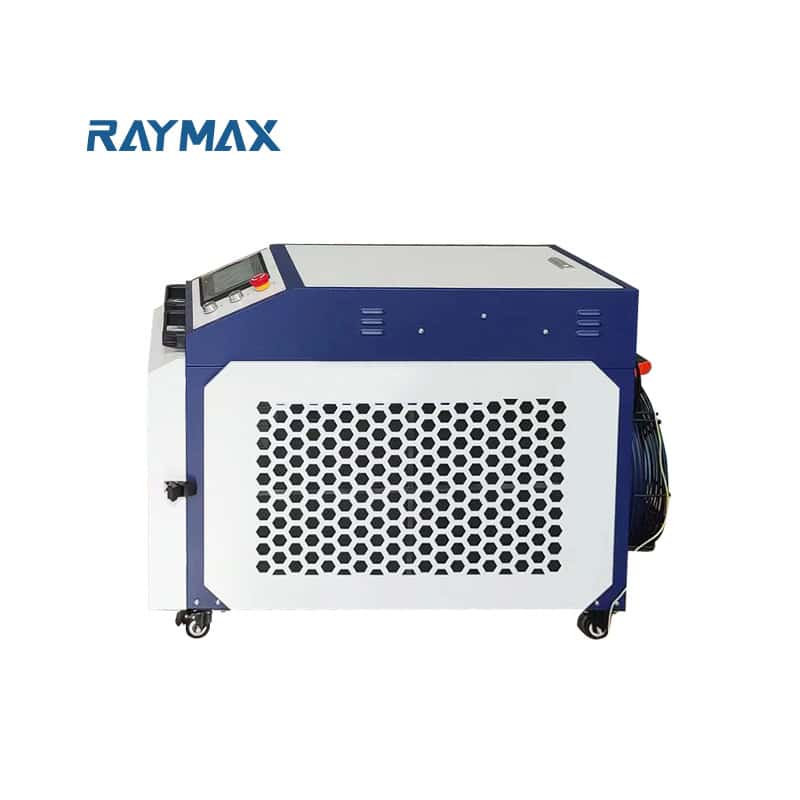

Handheld Fiber Laser Welding Machine

category Welding Machine

Meet all your diverse needs

Achieve Welding at Any Angle

Perfect for a variety of complex seams and Metal device

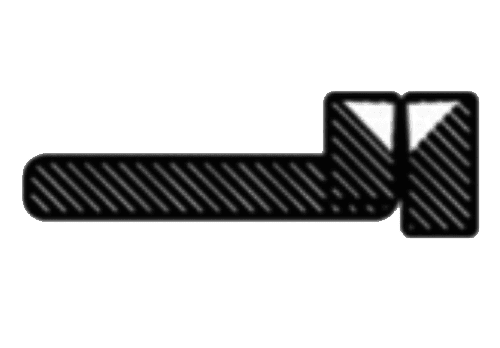

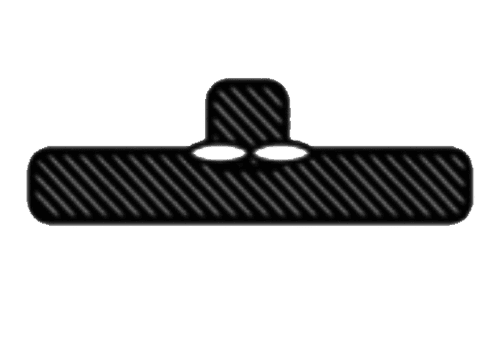

T-type welding

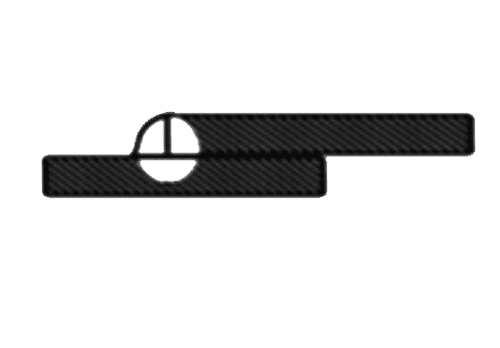

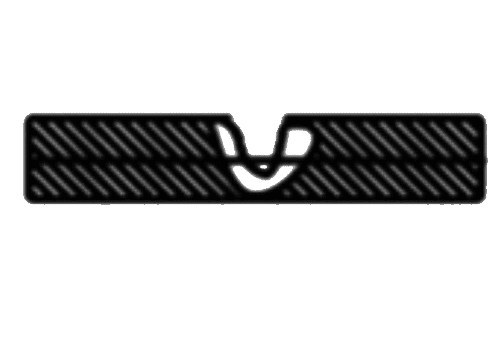

Overlap welding1

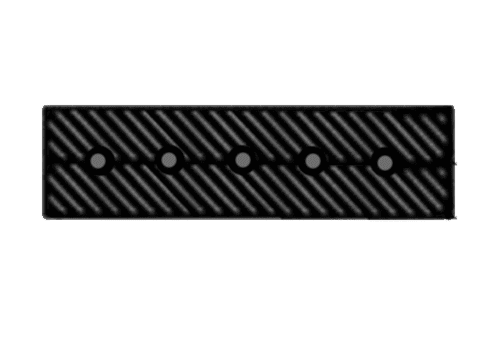

spot welding

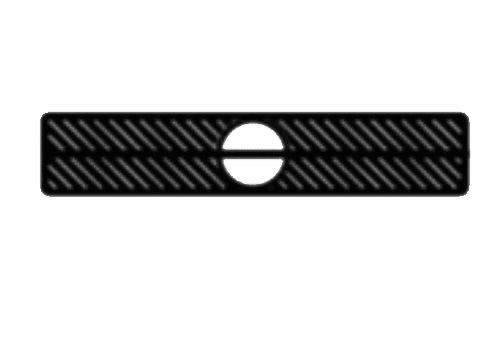

Overlap welding2
Overlap welding3

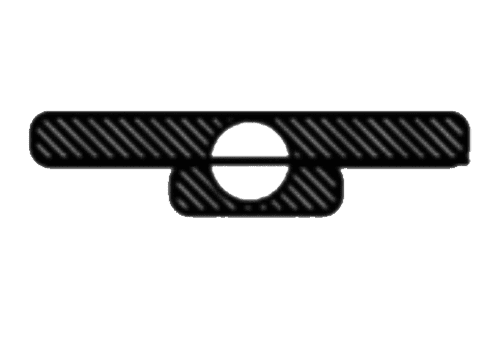

T-butt welding

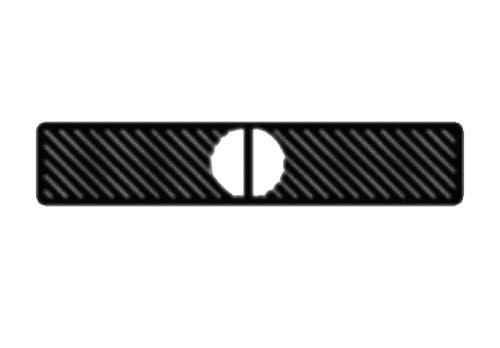

Butt welding

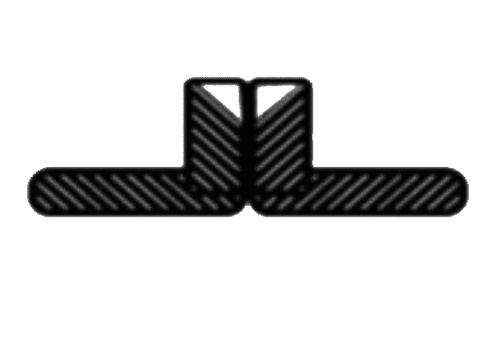

Hem welding

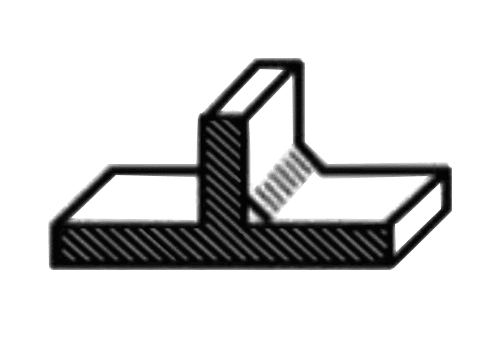

Internal fillet welding
Edge welding

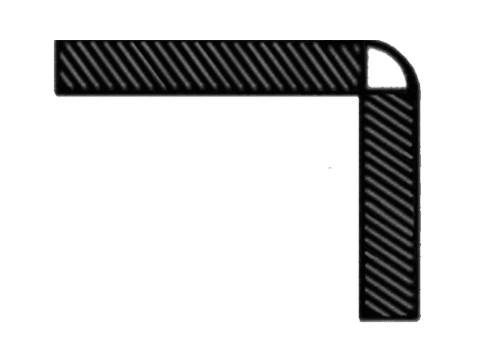

External fillet weld

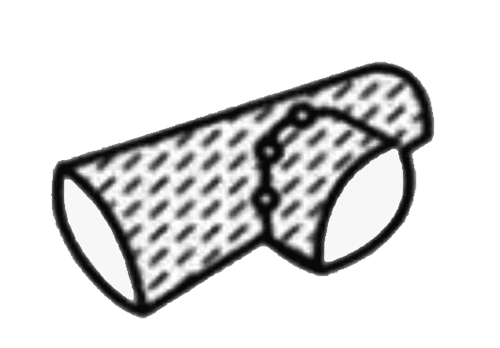

Arc welding

Wide range of welding materials

Large welding depth and high strength

Stainless steel
Gold & silver
aluminum
nickel & chromium
Titanium & Button
iron
copper
zinc

Description
Technical Data
Standard Equipment

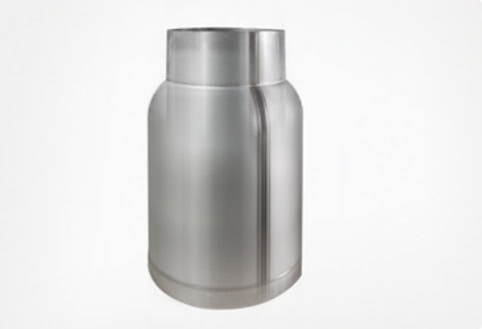

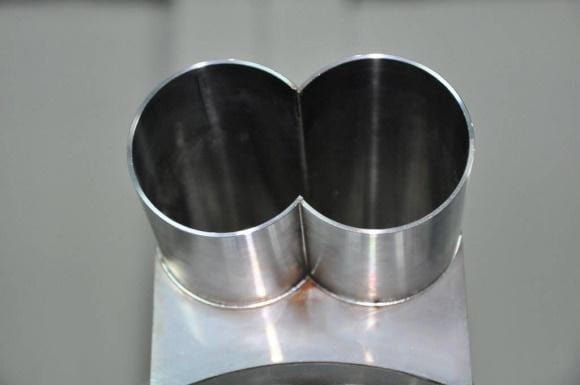

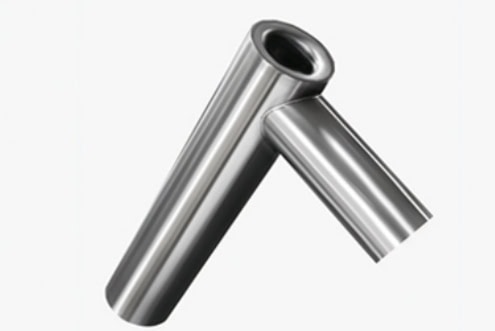

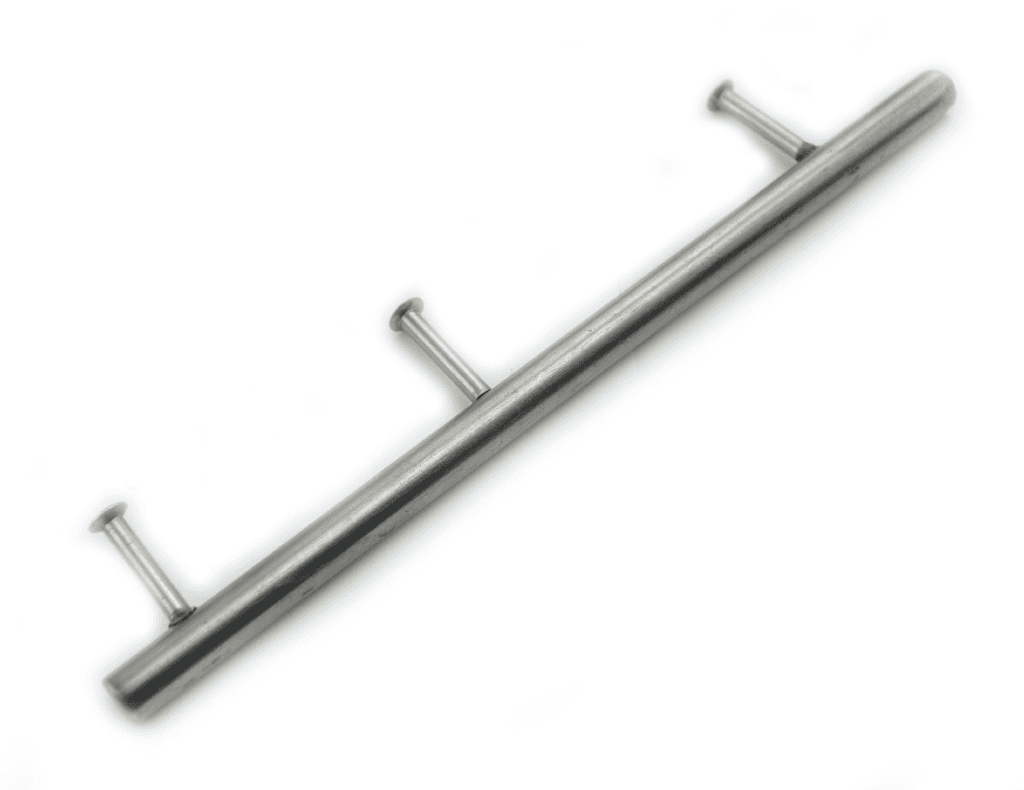

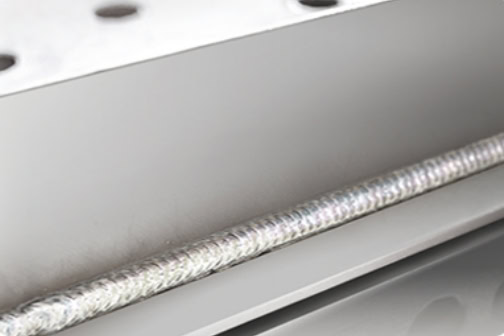

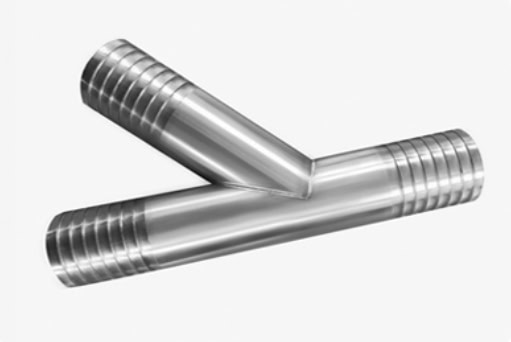

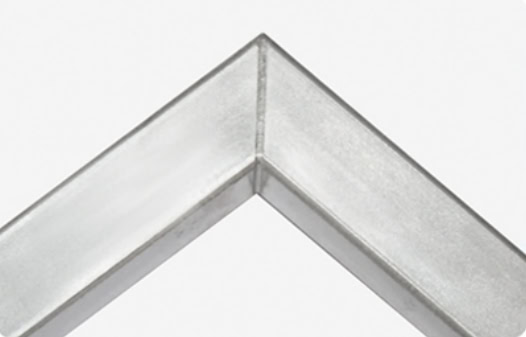

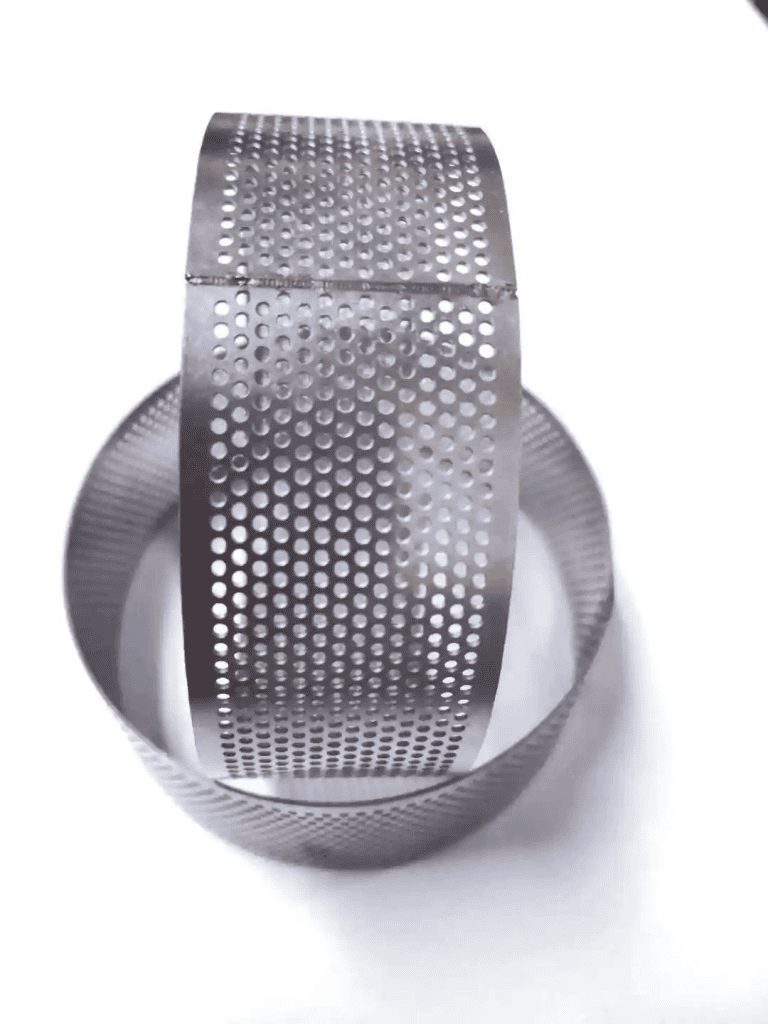

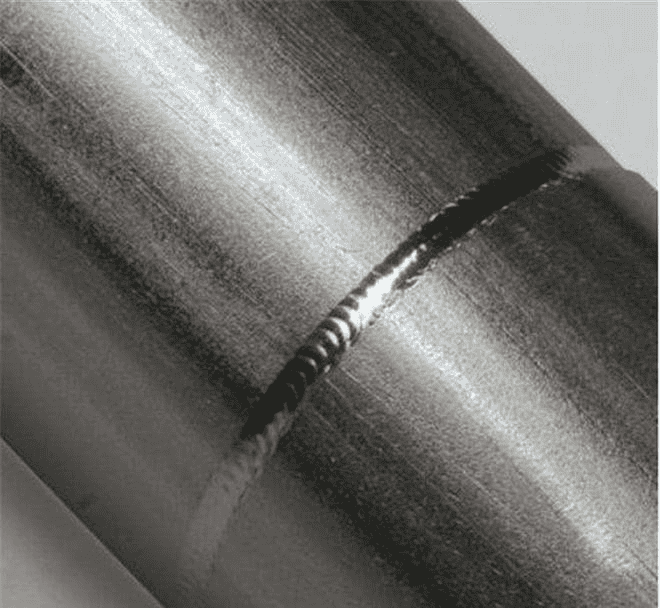

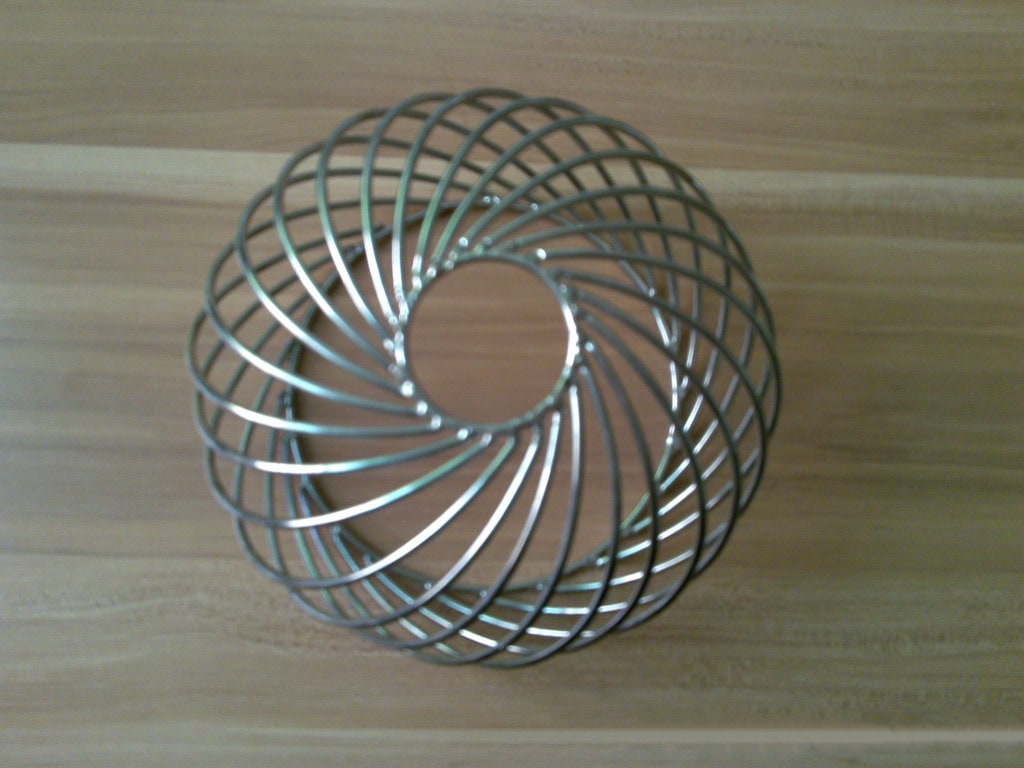

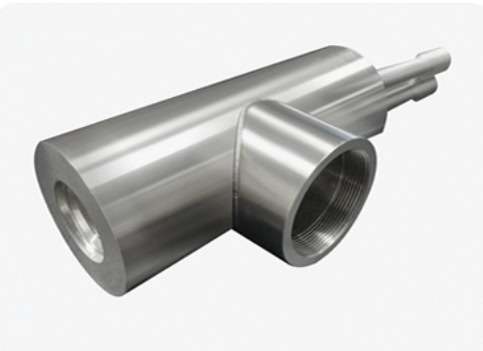

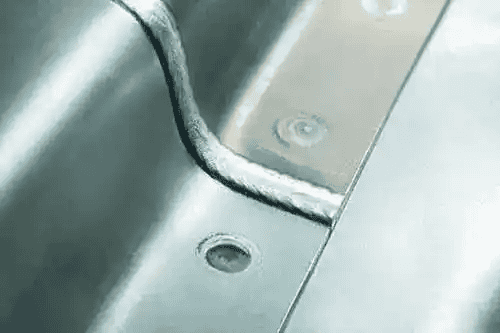

Welding Sample
Packaging & Transportation

Description

The handheld fiber laser welding machine uses 10 meters of imported optical fiber, connects the laser head through a cable, is equipped with automatic wire feeding and a swinging handheld head, and can weld large, non-moving products over long distances. And supports fixed laser heads to realize the automated welding operation of products. Suitable for welding of various materials such as stainless steel, carbon steel, galvanized steel, aluminum plates, copper plates, titanium alloys, etc.Its core advantages include:

Various welding methods: support spot welding, butt welding, surfacing, sealing welding, etc., to complete complex welding of flat lines, arcs and arbitrary trajectories.
High efficiency performance: optical fiber cable transmission, laser is more energy-concentrated, can penetrate stainless steel metals above 2mm, high welding efficiency and good effect.
Flexible operation: handheld welding head design, supports long-distance and arbitrary angle welding, and is convenient for handling various workpieces.

Features

Efficient and beautiful: fast welding speed, smooth welds, no secondary processing required, saving time and cost.
Low loss: small heat-affected zone, less deformation during welding, less consumables, and long equipment life.
Environmental protection and safety: replace traditional argon arc welding, the welding process is pollution-free, safer and more environmentally friendly.
Widely used: widely used in automobile, aviation, home appliances, sheet metal, electronics, machinery, medical, metal arts and crafts, hardware products and other industries.

RAYMAX Handheld laser welding, fast and efficient, welding artifact!

More information about RAYMAX

Download Catalogue

Parameters

Model	Hand-held fiber laser welding machine
Power	1000W 2000W 3000W (optional)
Laser Wavelength	1070NM
Fiber Length	Standard 10M / Maximum 15M
Welding Speed	0-120mm/s
Cooling Method	Industrial water chiller
Working Temperature	15-35℃
Recommend Welding Thickness	0.5-3mm
Voltage	220V

AX. WELDING THICKNESS

MATERIAL	1000W	1500W	2000W
Aluminium Alloy	2.5MM	3MM	4MM
Stainless Steel	4MM	5MM	6MM
Carbon steel	4MM	5MM	6MM
Galvanized	2.5MM	3MM	4MM
Brass	3MM	3.5MM	4MM
Mild Steel	4MM	5MM	6MM
Iron	4MM	5MM	6MM

Laser Welding Gun

Safety – foolproof: self-developed safety detection system, multiple safety alarms
Time-saving – efficient and convenient: focusing mirror and protective mirror are drawer-mounted for easy replacement
Lightweight – lightweight and burden-reducing: smaller size, lighter weight, flexible operation, easy to use
Quality – beautiful welding, stable performance: high welding strength, small deformation, high volume depth
Performance – multiple functions:
support handheld continuous welding, spot welding, cleaning, cutting in one
Dual temperature and dual control, integrated water cooling, circulating water circuit design, good cooling effect

Laser Source

Raymax uses high-quality continuous fiber laser, which is stable and power-saving, and basically maintenance-free
Welding speed is fast, efficiency is high, heat impact is small, welding point is pollution-free, safe and environmentally friendly!

peration Panel

System is stable and operation is simple
Supports multiple languages, wide parameter adjustment range
Nine welding processes can be switched with one key
One-key start-up, easy to use

Water Chiller

Built-in laser-specific circulating water cooling system, dual-circulation design, long-term high-power welding without pressure, 8 hours of continuous work can be easily handled, and stable operation of the equipment is guaranteed!

Welding Feeder (optional)

Supports automatic manual wire feeding, compatible with 0.8-1.6MM welding wire, more efficient welding
The motor drive is strong and smooth, avoiding wire feeding jams and instability problems, ensuring welding quality
