Press Brake Manufacturer

Wide range of capacity from 30T to 2000T.
Various high-end optional configuration, satisfied the highest multi bending demands.
Professional technical team provides efficient and timely services.

Product Catalogue

Standard Press Brak Series
Accessories Upgrade Solutions

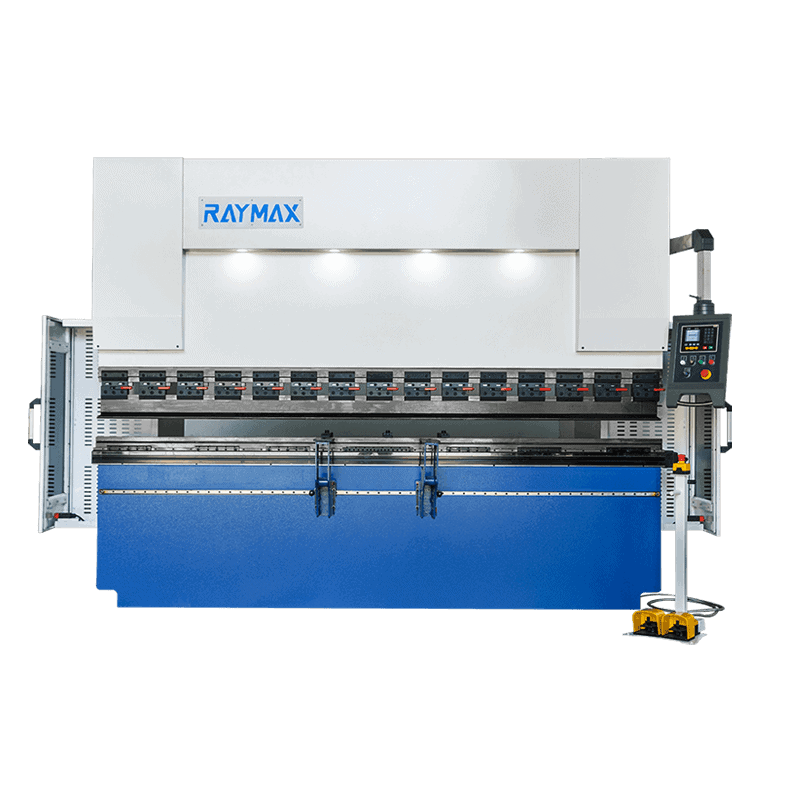

List page -RX-N Series NC Press Brake with E21 2 Axis

Sheet Metal Press Brake Machine 2 Axis Use ESTUN E21 Controller

CNC Hydraulic Press Brake 3-4 Axis Use DELEM DA53T

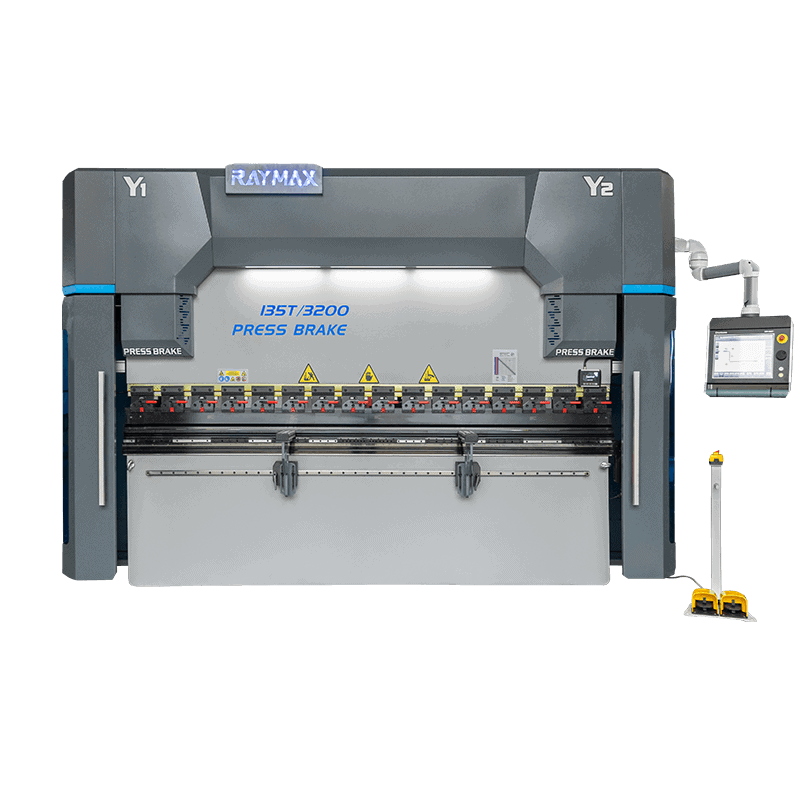

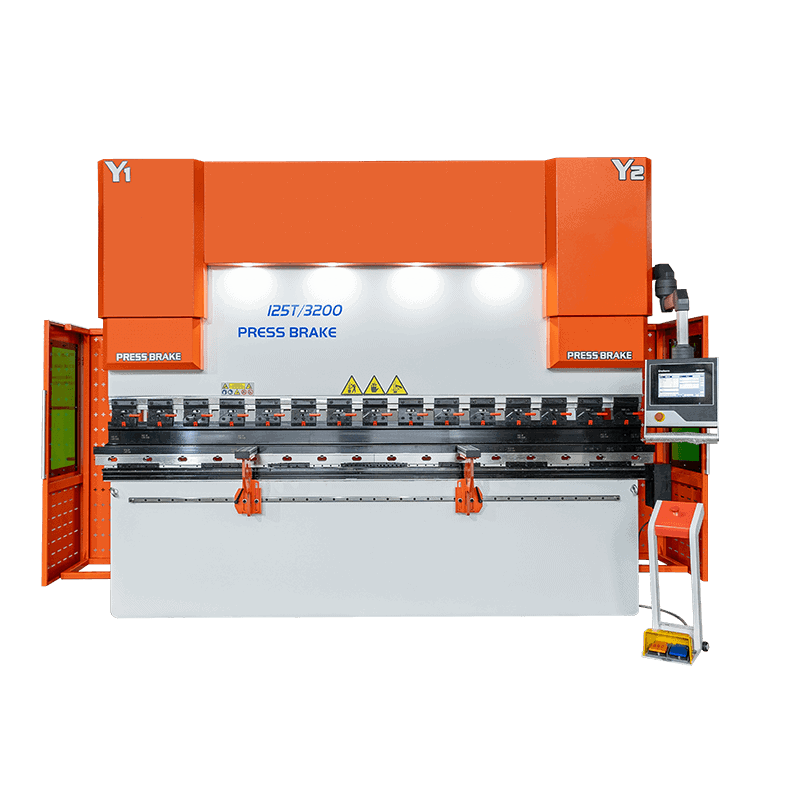

List page -RX-S Series CNC Press Brake 6 Axis

6 Axis CNC hydraulic Press Brake Use DELEM DA66T

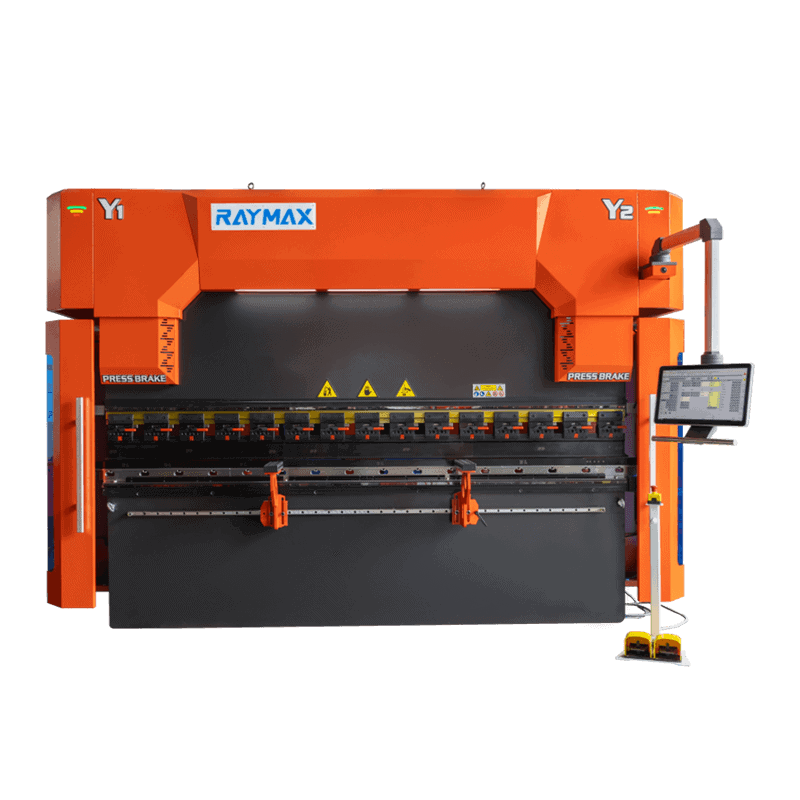

RX-H Series Hybrid Plus CNC Press Brake 8 Axis

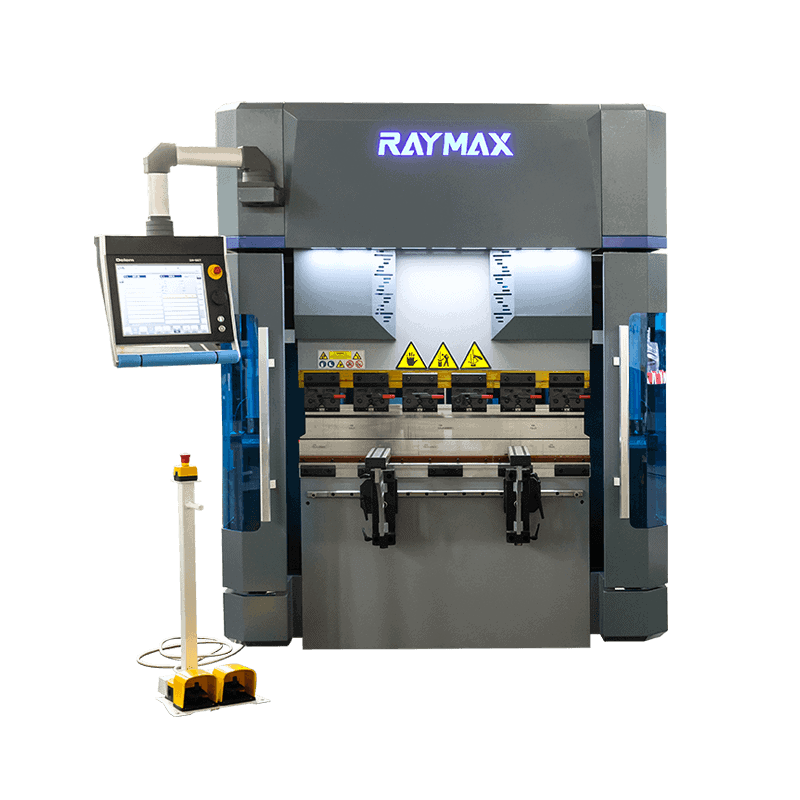

List page -RX-E Series Synchro Electric CNC Press Brake Machine 4-6-8 Axis

RX-E CNC Electric Servo Press Brake

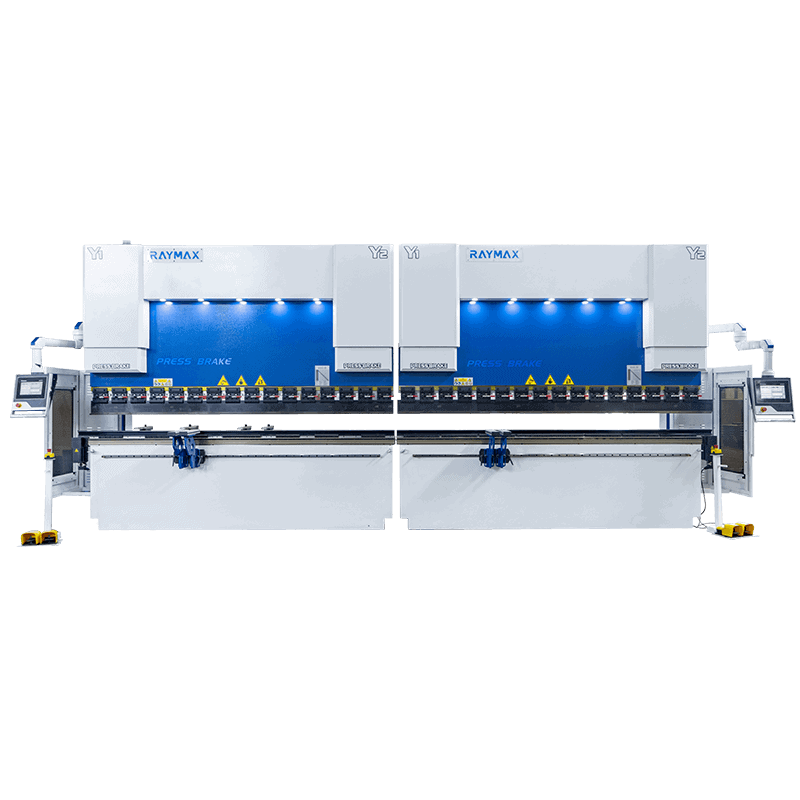

Electro-Hydraulic Tandem Press Brake

Download Catalogue

If you are not sure which press brake is right for your factory, please contact us immediately.
We can help you recommend the press brake product that best meets your application needs based on your specific needs, plate material and bending thickness.

In addition to the standard version of the press brake, we also provide customized upgrade solutions for press brakes to meet the diverse needs of customers for specific application requirements.

As Follows:

Crowning System —— Including Manual Crowning, Deflection Compensation Workbench, RAYMAX PPO Family CNC Crowning, Wila Tool Holders And Crowning System, etc.
Backgauge System —— Including BGA-2 BackGauge (X, R), BGA-4 BackGauge (X, R, Z1, Z2), BGA-6 BackGauge (X1, X2, R1, R2, Z1, Z2), etc.
Tooling Clamping System —— Including Rolleri Clamping System, Wilson Pneumatic Clamping, Wila Hydraulic Clamping System, etc.
Bending Follower Supports —— Including Hybrid servo motors and Hybrid Plus Servo Motor.
Safety System
CNC Control System —— Including Delem DA53T, DA58T, DA66T, DA69T, DA66S and DA69S, CYBELEC CT8, CT12 and CT15,ESA S630, ESA S640, ESA 860 and ESA 860 CNC Press Brake Control.

Crowning System

CNC crowning: guaranteeing a perfect bend angle every time!

By preloading the machine, CNC crowning counteracts any possible deflection and tool wear under machine load, ensuring a constant bend angle throughout the entire length of the machine, guaranteeing smooth operation of the contact surface under load.
With the CNC clamping system, pre-programmed with advanced machine characteristics and deflection data, manual crowning allows quick and easy development of simple sub-tables or charts for each application.

Experience unprecedented precision, reliability and efficiency! Boost your machining capabilities today!

1. Deflection Compensation Workbench

2. RAYMAX PPO Family CNC Crowning

3. Wila Tool Holders And Crowning System

Backgauge System

RAYMAX: The Ultimate Solution for All Your Bending Needs!

We proudly offer 2, 4 and 6 axis support brackets designed to meet all your bending requirements. Let us assist you in configuring the perfect solution for your press brake!

1. BGA-2 BackGauge（X,R）

Equipped with ball screws and linear guides on X and R axis
Lightning-fast x-axis speed: 500 mm/sec!
Manual Z1, Z2 axis features HIWIN linear guides for smooth operation.
Excellent mechanical accuracy: ±0.03 mm!
Precise control: our fingers come with double stops and micrometer adjustments

2. BGA-4 BackGauge（X,R,Z1,Z2）

Equipped with ball screws and linear guides on X and R axis
Precision belts and YYC racks on Z1-Z2 axis
Precise positioning: finger double stops and micrometer adjustments
Excellent mechanical accuracy: ±0.03 mm!
Z1-Z2 axis speed: 1000mm/s
X axis speed: 500mm/s

3. BGA-6 BackGauge（X1, X2, R1, R2, Z1, Z2）

Ultimate precision across 6 axes (X1, X2, R1, R2, Z1, Z2) takes your press brake capabilities to the next level!

Precise movement: ball screws and linear guides on X and R axes ensure smooth
Precise linear guides and YYC racks on Z1 – Z2 axes
Precise linear guides and YYC racks on Z1 – Z2 axes
Precise positioning: finger double stops and micrometer adjustments
Lightning speeds:
R1-R2 axis: 500mm/s
X1-X2 axis: 600mm/s (upgradeable to 1000mm/s!)
Z1-Z2 axis: 1100mm/s
Excellent mechanical accuracy:
±0.03mm!
The BGA-6 back gauge is your preferred solution for high-precision bending. Experience the power of innovation with RAYMAX!

Tooling Clamping System

Discover the ultimate clamping solution for your press brake needs!
At RAYMAX, we bring you cutting-edge clamping systems designed to maximize efficiency, precision and safety. Whether you are looking for a manual, pneumatic or hydraulic model, we have the best tools for you to revolutionize your press braking operation.

1. Rolleri Clamping System

New clamps for Amada, Boschert, Bystronic-Beyeler Euro-B, ROL200 punches! Compatible with top brands: Durmazlar, Ermaksan, Gasparini, Haco, Promecam and more; the new patented Rolleri clamping system clamps your top tool vertically manually, pneumatically or hydraulically, providing incredible efficiency gains with simple operation and low price!

Why Choose Rolleri?

Fast vertical tool change: available on all Rolleri R1 punches
Quick to use: no modification of the Rolleri R1 punch is required
Safe and fast: safe and fast tool change without the risk of tool dropping.
Cost-effective: significantly reduces time and related costs.
Versatile choice: Available in manual, pneumatic and hydraulic models.

2. Wilson Pneumatic Clamping

Fast Air Clamping Systems Built for Speed!
Designed for users who frequently change press brakes, Wilson Pneumatic Clamping Systems are your fast, efficient and reliable solution for jobs.

Why Choose Wilson?

Fast Tool Change: Vertical tool change for all Euro-style punch presses.
High Safety: Fast Air Clamping with no risk of tool drops.
Time Saving: Reduce setup time, lower costs and increase productivity.
Flexible Choice: Available in manual, pneumatic and hydraulic models.

3. Wila Hydraulic Clamping System

Market Leader in Precision and Flexibility!
Wila “New Standard” tool systems are market leaders in precision, quality and flexibility, making them the perfect partner for RAYMAX hydraulic press brakes.

Why Choose Wila?

Durability: >10 years of service life.
Safety: WILA-style tool fast clamping
Ease of Use: Simple push button loading, fast operation.
Time Saving: Reduce tool change time by up to 80%.
High Precision: Achieve perfect bend angles and flange edges every time.

Upgrade your press brake with a RAYMAX clamping system today!
Experience faster setup, safer operation and unmatched efficiency. Choose Rolleri, Wilson or Wila for the ultimate clamping solution!

Bending Follower Supports

Bending Follower Supports: the perfect solution for heavy parts or large thin sheets!
RAYMAX hydraulic machine brakes are equipped with an advanced sheet support follower system, focused on bending long, thin or heavy sheets with high bending accuracy and ease of use. This innovative system features a pair of CNC-controlled sheet supports located on the bending line, controlled by the CNC, ensuring a constant and consistent bend throughout the bending process.

As shown: A very large, heavy, thin sheet can bend in reverse during the bending operation due to the torque generated by the overhang. Our sheet lifters provide the necessary support throughout the bending cycle, preventing damage and ensuring a perfect job result.

Why Choose Our Bending Follower Supports?

Automated operation: Seamless bending is achieved with CNC interpolation axes (AP1-AP2).
Ideal for heavy parts: Suitable for heavy parts or large thin sheets
Flexible bending angles: Achieve bends up to 70° closure
High load capacity: Load capacity of each support is 180 kg
Flexible size: Brush and support shaft sizes range from 350×900 to 1200 mm.

Servo Motor

Upgrade your bending operation with hybrid servo motors, designed for high-performance applications, providing excellent results while reducing costs and environmental impact.

Why Choose Hybrid Servo Motors?

1. Hybrid Servo Motor

Energy saving: 30% energy saving with cutting-edge technology, high efficiency.
Environmentally friendly operation: No pollution, environmentally sustainable.
Low fuel consumption: Low fuel consumption
Low cost: Low maintenance and use costs
Excellent sealing

2. Hybrid Plus Servo Motors

Energy saving: 30% energy saving with cutting-edge technology.
Power saving: 60% electricity saving compared to traditional drives.
Efficient: Up to 30%, higher efficiency (shortened cycle time).
Accurate: Micron-level accuracy, positioning up to 5um
Quiet: Reduced noise, quieter machine operation
Low fuel consumption: Minimal hydraulic oil consumption, only 30% of traditional hydraulic oil
Simple: Easier to build, easier to maintain, fewer machine failures.

Upgrade your bending operation today!

Choose our bending follower brackets and hybrid servo motors for a future of precision, efficiency and sustainability. Experience the difference brought by RAYMAX!

Safety System

Raymax is now fully upgraded with LazerSafe laser protection system to protect your press operators from all angles!
The LazerSafe system uses high-precision laser scanning to cover all critical areas and synchronizes with the movement of the slider and tool, creating an intelligent safety barrier around the bending tool head.
When the slider is moving at high speed, the LazerSafe system ensures in real time that any object must enter the safe range before touching the tool tip. Whenever an obstacle (such as the operator’s finger) is detected to enter the protected area, the system will immediately signal and stop the slide operation to avoid any accidents. Reliable, safe and effective.

Raymax puts safety at the forefront of your operation!

CNC Control System

— If you need to upgrade your CNC system, you can follow the link below for more information. —

DELEM DA58Tx

DELEM DA66T

DELEM DA69T

DELEM DA66s

DELEM DA69s

CYBELEC Cyb Touch 8

CYBELEC Cyb Touch 12

CYBELEC Cyb Touch 15

ESA S630

ESA S640

ESA 860

ESA S875

Characteristics and advantages

20 to 100 tonnage Capacity

900 to 3100mm Bending Lengths

Sectionalised Euro Style Top Tool

4 to 11-axis CNC Control

Multi Vee Euro Style Bottom Die

2D or 3D Program Entry

Precise Positioning

The rear feed system is designed with high-precision check components, equipped with HIWIN ball screws, and supports multi-axis adjustment (X, R, Z and V axes), ensuring high-precision positioning and consistency to meet a variety of workpiece requirements.

±0.02 mm

Slider Positioning Accuracy

400 mm/s

X-axis Speed

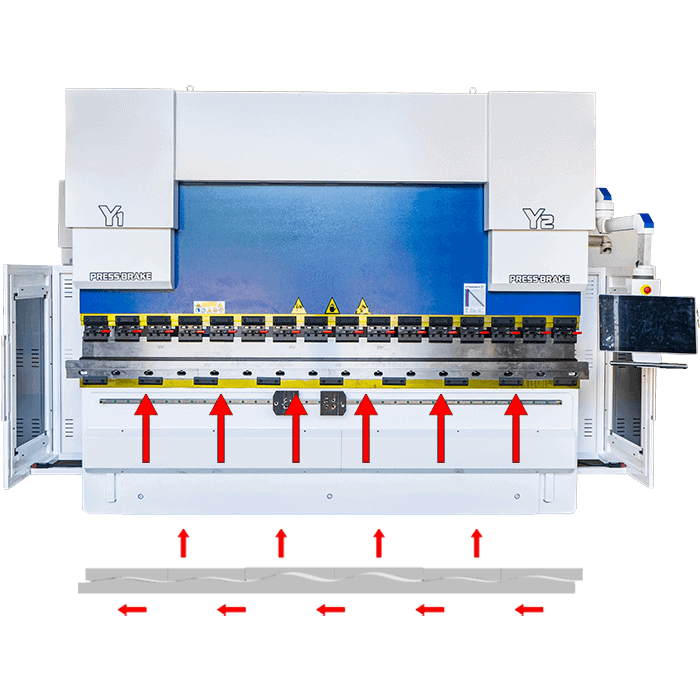

Fully Synchronized

The mechanical compensation workbench eliminates the impact of slide deformation on bending accuracy through multi-point compensation or manual deflection compensation.By adjusting the protrusions at each position of the workbench,angular errors at different positions of the workpiece can also be corrected.

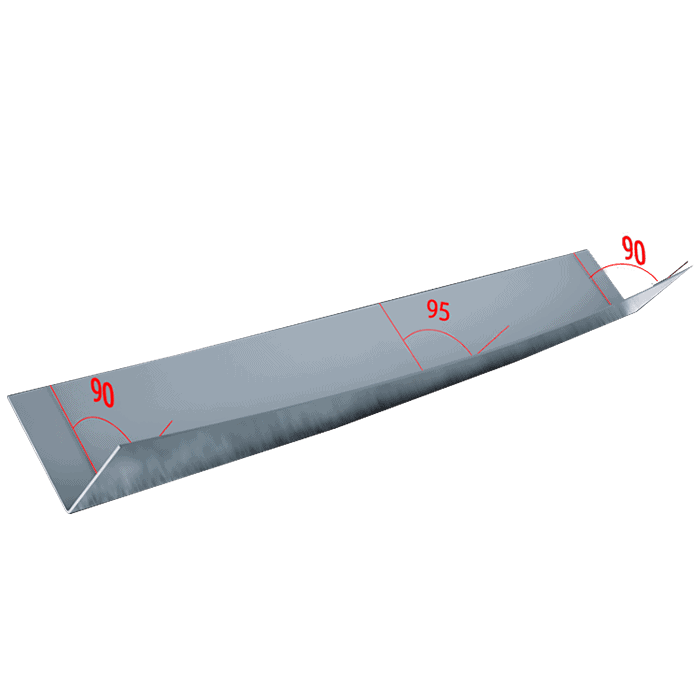

Before

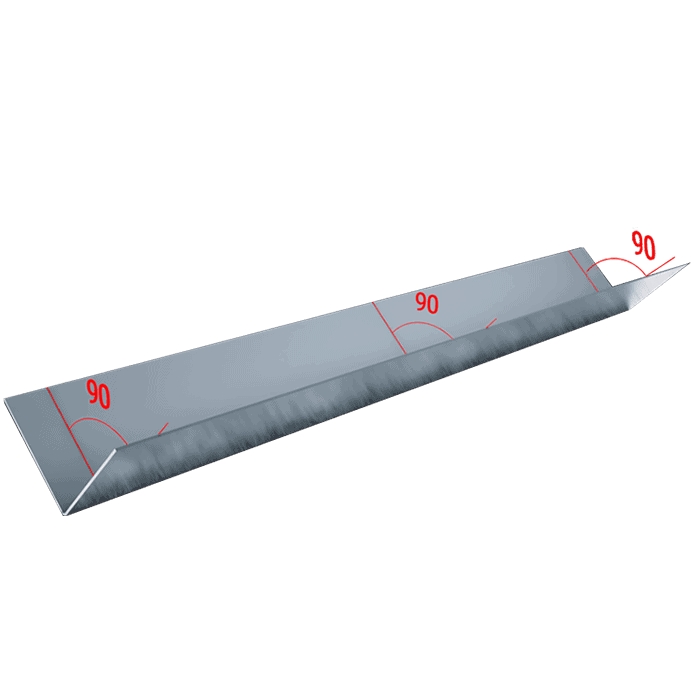

After

Intelligent CNC

Raymax adopts Delem and ESA original CNC system, HD touch screen, two-dimensional graphical programming, support a variety of molds and dual machine linkage, 7000+ step storage, to help you achieve efficient and accurate bending experience!

Precision Improvement30%

Setup Time Reduction50%

Production Consistency25%

Widely Used

Meet the needs of arc, edge pressing, return type, closed type and other complex metal bending.

Choose upper and lower molds, input sheet thickness and angle to bend to the desired angle.
Easy to operate, suitable for operators of all skill levels.

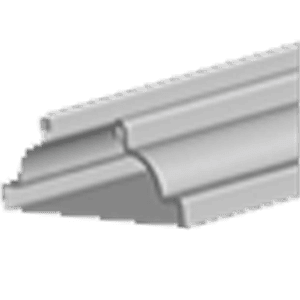

Arc

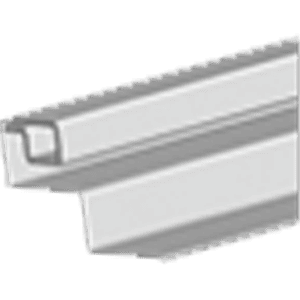

Closed Type

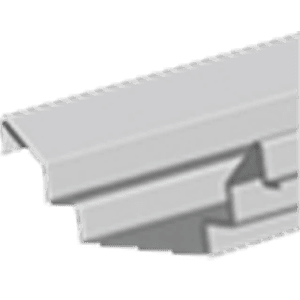

Complex Style

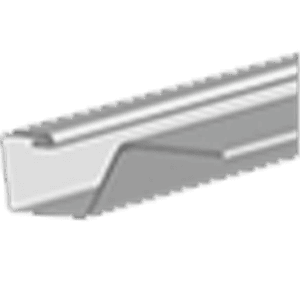

Edge Pressing

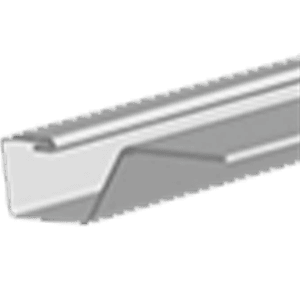

Return Type

Great machine tools, fair price !

Global Technical Support

Germany Bosch Rexroth Hydraulic System

High Precision Oil Cylinder

Schneider Electrical Components

One-Time Forming, Precision Manufacturing

Low-Noise Back Positioning Technology

Mechanical Deflection Compensation

Versatile Standard Molds in Various Specifications

Projects Using Press Brake

boats

Automobile body

Metal fence

Metal door

elevator

Aircraft fuselage

Safe case

Iron tower

building

Elevator ladder

aerospace

Steel structure building

rail traffic

Kitchen equipment

Hardware tool

Construction machinery

Send Inquiry To raymax

Frequently Asked Questions

RAYMAX was founded in 2002 and is a professional sheet metal equipment manufacturer with 24 years of production experience, focusing on providing high-quality press brakes, fiber laser cutting machines and welding machines.

Standard machines are shipped within 30 days, and customized machines are no more than 50 days, allowing you to quickly put into production.

We provide flexible payment methods, including T/T and L/C, supporting 30% deposit and 70% payment before shipment. For special customers, it can be flexibly negotiated.

Based on the material type, thickness, bending accuracy, tonnage and automation requirements, our team will recommend the most suitable equipment for you.

The tonnage depends on the material thickness, bending length and bending radius, and the RAYMAX team can help you calculate it.

RAYMAX press brakes can process a variety of metals such as carbon steel, stainless steel, aluminum, copper, titanium, etc., and each material may require different tonnage and tools.

Regular lubrication, checking the hydraulic system, and checking the wear of the tools and back gauge will ensure optimal performance.

Yes, our press brakes are equipped with 2D/3D programmable controllers, which are simple to operate and can easily set up complex bends.

Yes, we provide manuals, video tutorials, and remote or on-site training to ensure that you can quickly master the operation of the equipment.

RAYMAX press brakes are equipped with safety systems such as light curtains and emergency stop buttons, and meet international safety standards to ensure operator safety.

High quality: excellent equipment performance, durable and reliable.
Reasonable price: high cost performance, helping you optimize costs.
Perfect service: worry-free after-sales, trusted by customers around the world.

Yes, we can customize tonnage, size, controller and special tools according to your needs to meet your unique application.

Remote assistance: Engineers provide one-on-one guidance online to quickly solve problems (and send text instructions or videos).
Warranty support: Free parts replacement during the warranty period.
On-site service: Technical experts provide door-to-door service, which is considerate and worry-free.

Yes, we support OEM customization, including appearance, color and configuration, to help you create a unique brand image.

The minimum order quantity is only 1 unit, which is flexible to meet your production needs and can be OEM customized

Absolutely safe. The equipment is transported in containers and fixed with steel wires to ensure safe and intact sea transportation. In addition, we ensure that no other items are placed in the container with the machine you ordered.

Before placing an order, our sales team will understand your needs in detail and recommend the most suitable configuration to ensure that the equipment accurately matches your production goals. Our first priority is not to recommend more expensive machines to increase sales, because expensive machines may not be the best for your needs.
