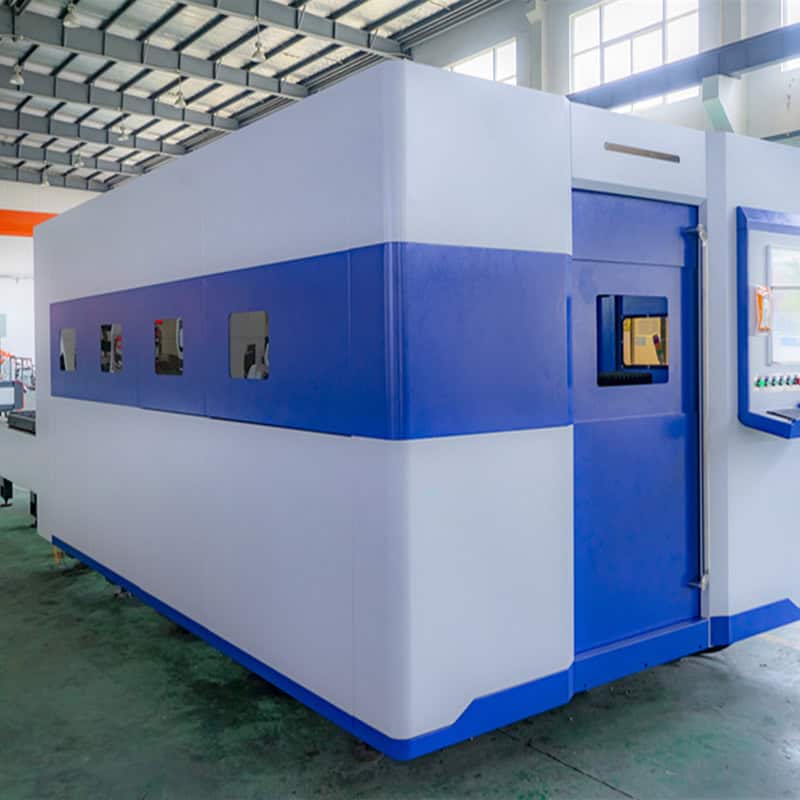

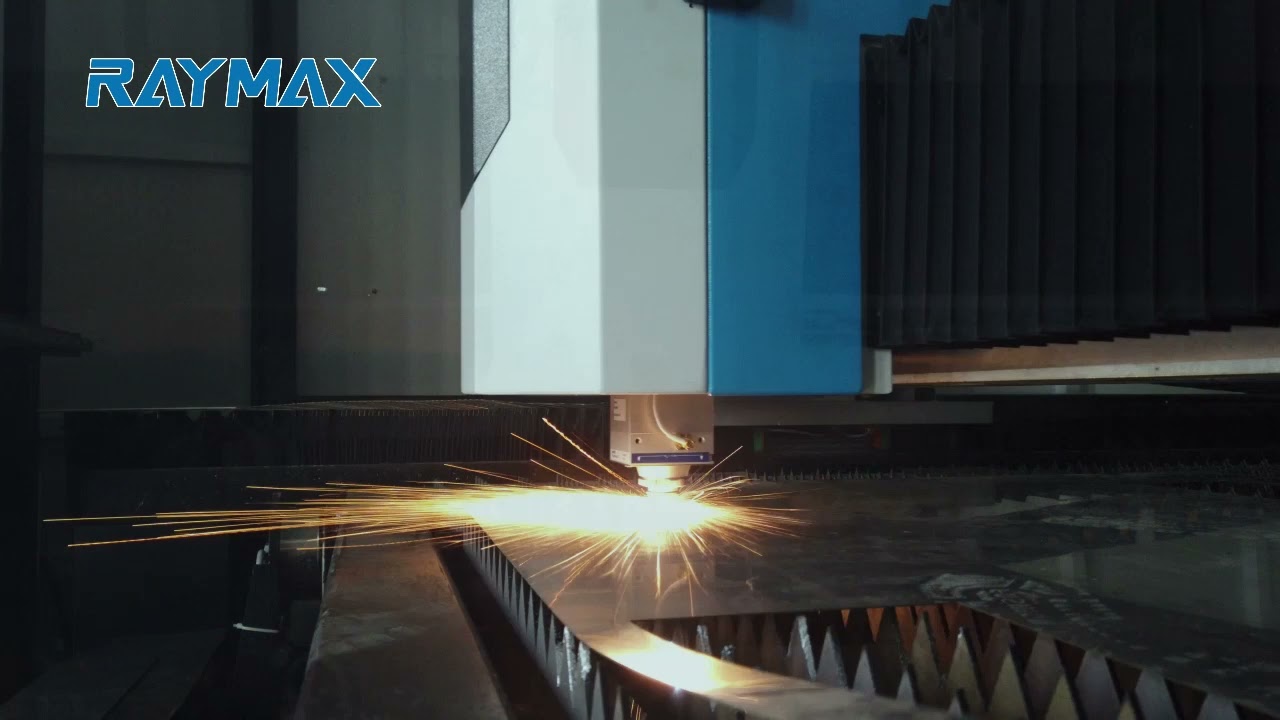

Enclosed type fiber laser cutter for plate

Fully enclosed design, safe and efficient，Suitable for large-scale precision cutting

Multiple models available—customization supported
Suitable for Cutting Various Metal Plates
No Burrs, No Slag, No Black Edges, No Deformation
Capable of Cutting Both Thick and Thin Plates
Auto-Focusing Laser Head & Wide focus adjustment range
High Precision, High Speed, Powerful Performance

3-year Warranty
Global Transportation

Enclosed type fiber laser cutter for plate

Enclosed type fiber laser cutter for plate

category Laser Cutting Machines

Professional Metal Plate Laser Cutting Machine

Step 1: Select the basic model

Size and power

Choose laser power of 3000 x 1500 mm, 4000 x 2000 mm, 6000 x 2000 mm ，6000 x 2500 mm and 1-60 kW.

Step 2: Choose your package

According to your needs

Depending on your goals, you can choose and combine up to 10 different configuration packages (including bed, beam, servo system, control system, laser, cutting head, water cooler, reducer, linear guide, gas proportional valve and other common laser accessories).

Step 3: Send us your configuration

Add more options

After you send us your inquiry, we will contact you as soon as possible to provide a quote. Until then, you can still add more options to create the perfect cutting setup that meets your needs.

Description
Technical Data
Standard Equipment
Upgrade Solutions

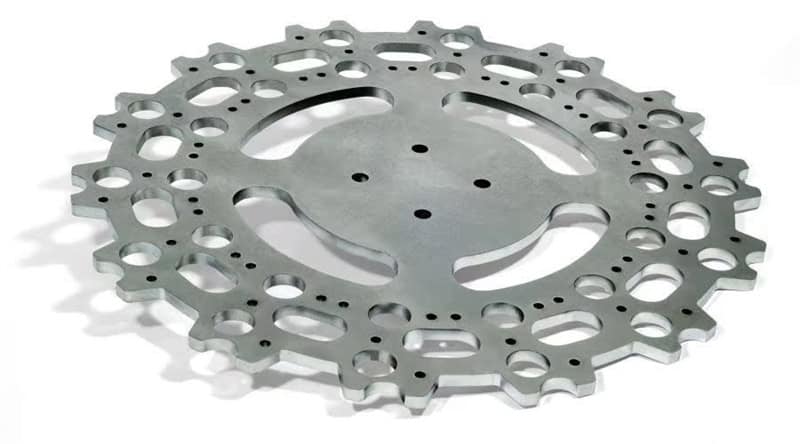

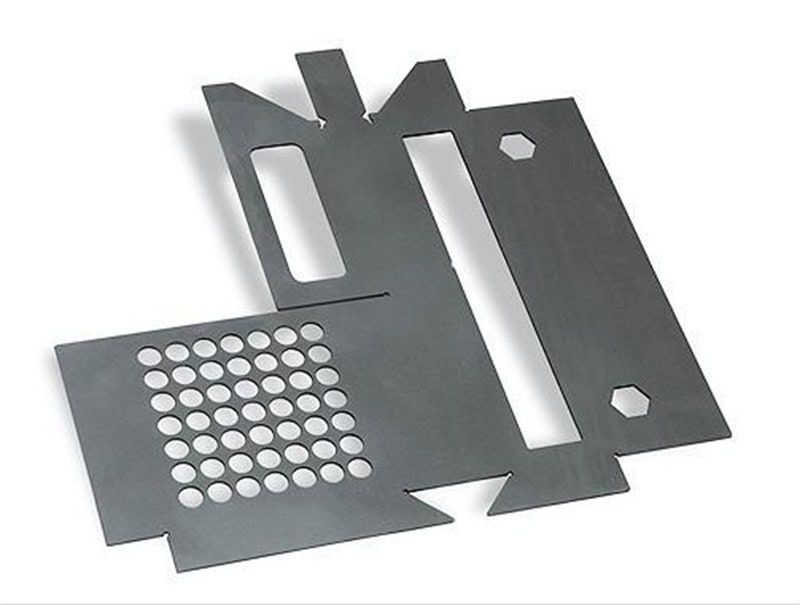

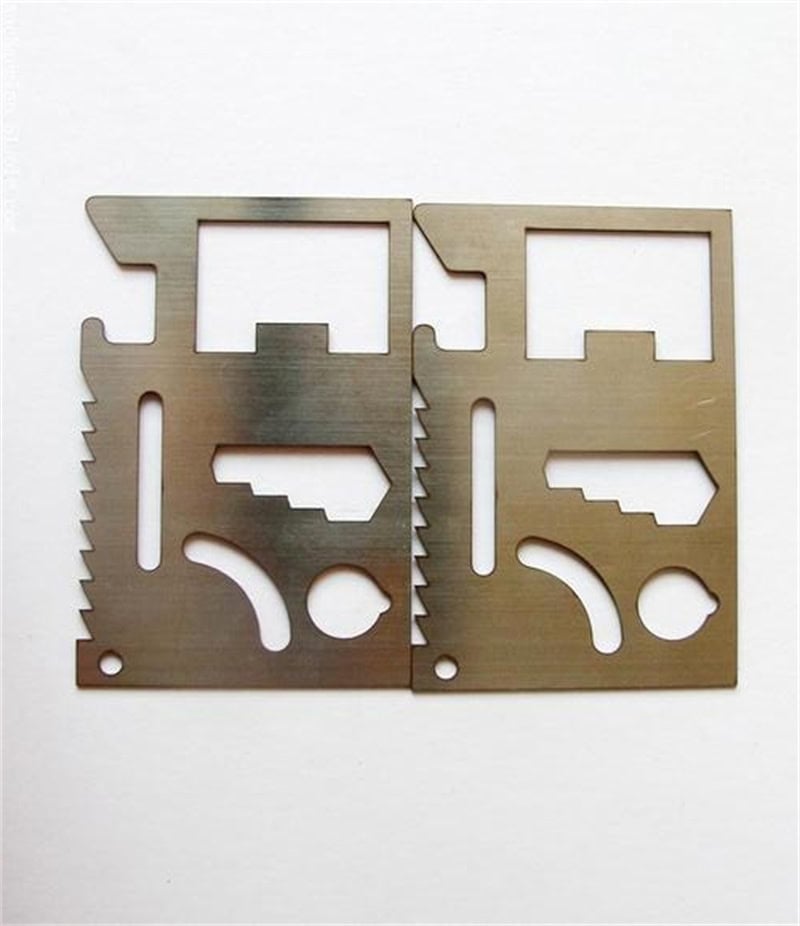

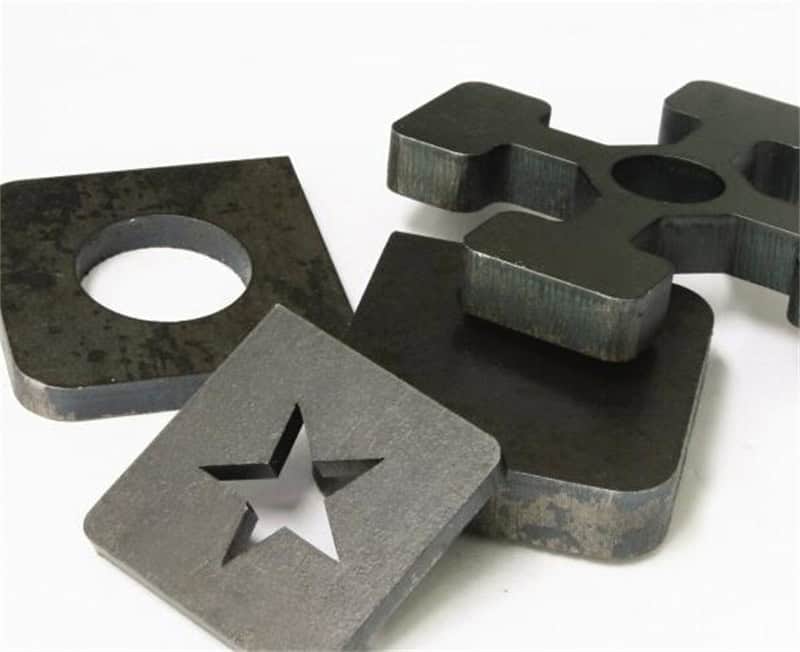

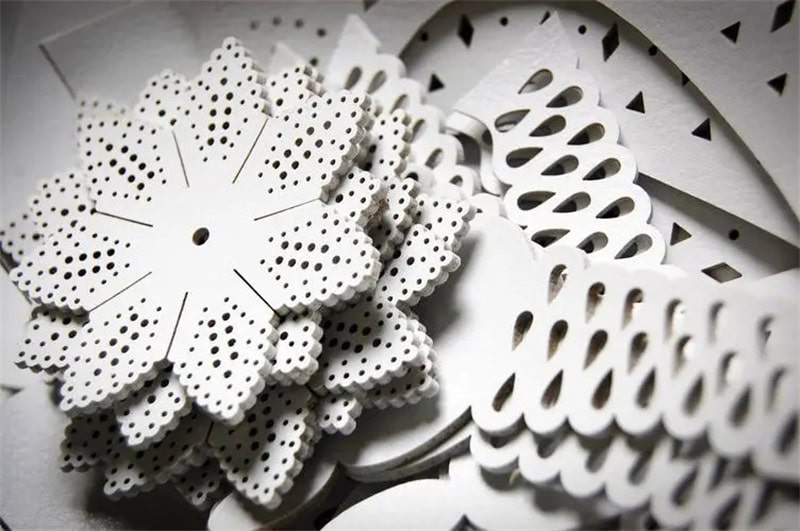

Cut Sample

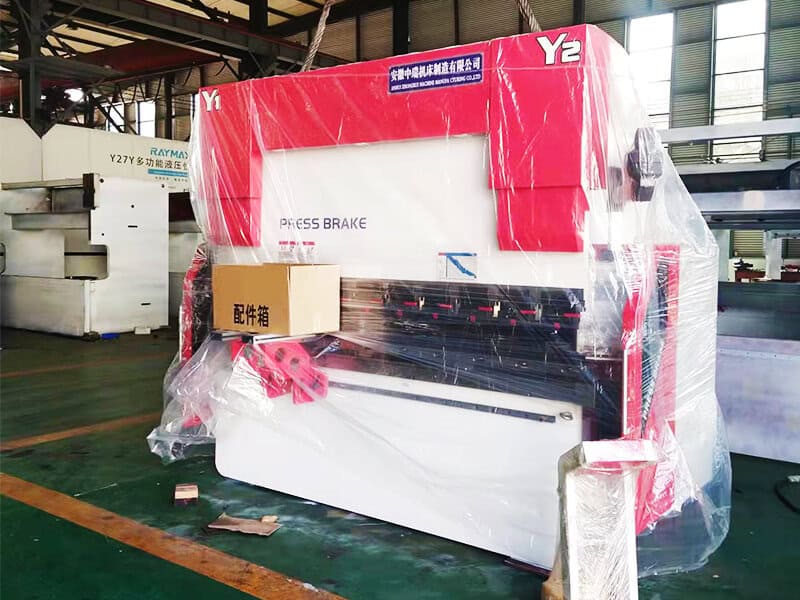

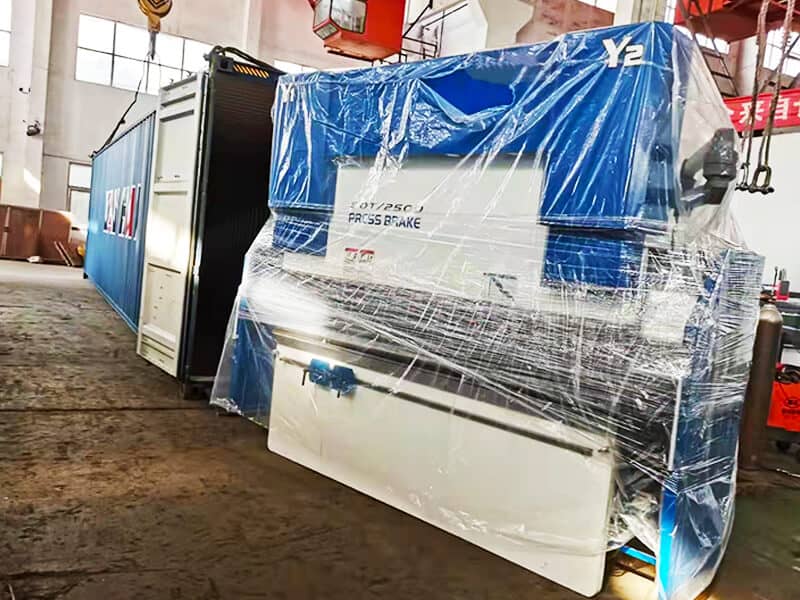

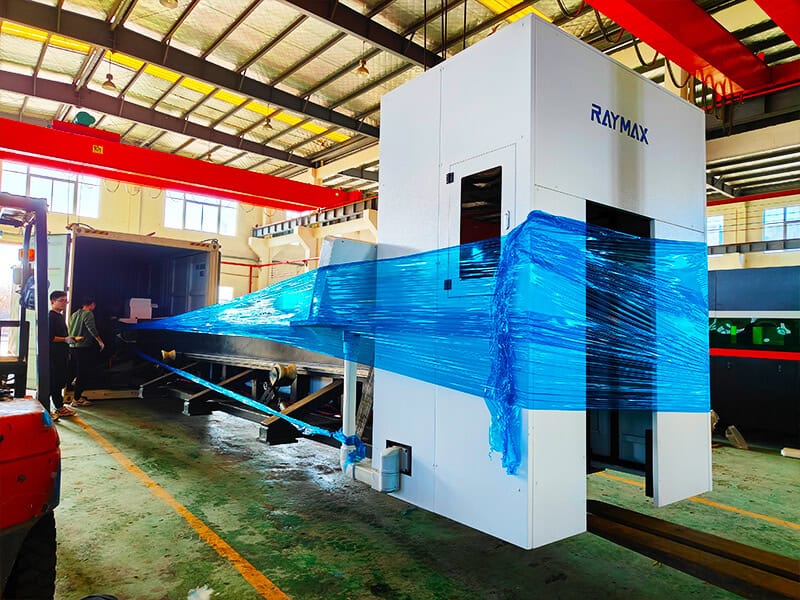

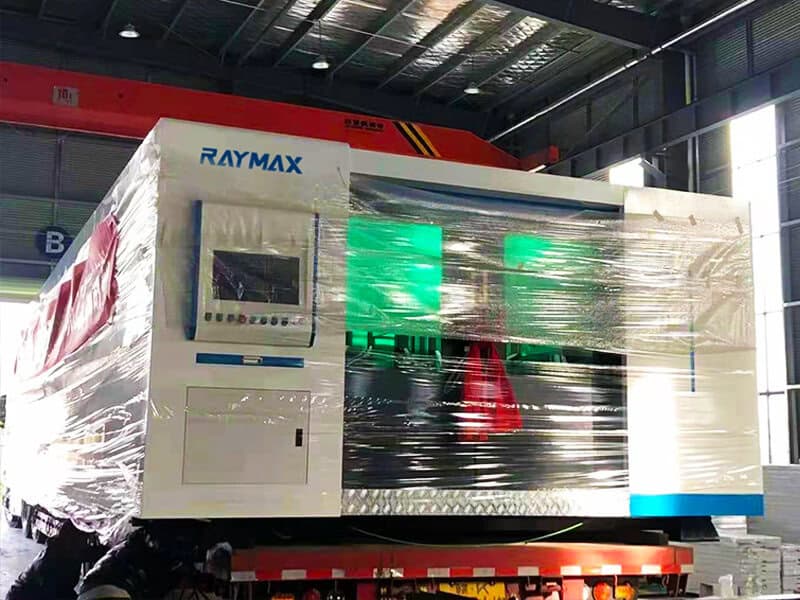

Packaging & Transportation

Description

The fully enclosed double switch fiber laser cutting machine is equipped with an industrial welded structure body, which is roughed after high temperature annealing and finished after secondary vibration aging treatment. Its advantages include:

Cast aluminum beam: heavy steel die pressure casting, to ensure the strength and accuracy of the machine and service life;
Closed cutting platform: improve purification efficiency and reduce lens pollution.
Parallel exchange platform: 10S exchange time, faster, more time saving loading and unloading.

Features

Smooth operation: Using imported Motovario reducer, high precision rack and pinion and linear guide to ensure smooth operation at high speed, low noise and reliable performance.
Strong drive: servo drive control, stronger torque, faster running speed, more stable;
High efficiency dust extraction: Follow type dust extraction system, good dust extraction effect, energy saving;
Fine cutting: The use of domestic leading laser cutting head and laser lens, to achieve smaller focus spot and higher cutting quality; The optical route of the whole machine is optical fiber transmission, which does not require complex optical guide system such as mirrors, simplifies the optical path and is maintenance-free.
Energy-saving design: The use of well-known fiber laser, electro-optical conversion efficiency is high, can greatly save the power consumption during work, save operating costs; The cutting edge is less affected by heat, the cutting seam is smooth, and there is generally no need for secondary processing.
Intelligent control: Professional laser cutting control system, with intelligent typesetting function, simplify operation, improve efficiency.

Choose our laser cutting machines to increase your productivity now!

More information about RAYMAX

Download Catalogue

Parameters

Product Model	RX-3015	RX-4020	RX-6020	RX-6025
Working Area	3000*1500mm	4000*2000mm	6000*2000mm	6000*2500mm
Laser Power	1000W、1500W、2000W、3000W、6000W
Positioning Accuracy	±0.03mm/m
Repeated Positioning Accuracy	±0.02mm
Maximum Moving Speed	120m/min
Maximum Cutting Speed	60m/min
Drive System	High precision gear and rack + high precision linear guide rail
Voltage	380VAC ± 10%/50Hz

Stable and Solid Bed

The bed is composed of a number of welded rectangular tubes, with internal reinforcement, and through 600℃ high temperature annealing to remove stress, improve the ductility, compressive strength and hardness of the bed, to ensure the rigidity and stability of the machine tool high-speed movement, reduce thermal shock.

Transmission System

The machine uses a combination of German ROR rack and Taiwanese HIWIN linear guide rail for more durability, in addition to high quality helical rack and pinion to ensure high precision.
The rack and pinion on the XY shaft are imported from high-quality sources, and the high hardness of the material makes the frame more wear resistant.
Optional linear guide brand: Japan SMG/ Germany HEREN

1. MAX Laser Generatorr

2. RAYCUS Laser Generator

3. IPG Laser Generator

Fiber Laser Generator

Using well-known brand laser, MAX / RAYCUS / IPG optional , manufacturer direct supply, quality assurance.

Fiber laser has high integration and easy operation;
The internal structure is compact and light, easy to install, and basically maintenance-free operation.
Service life of more than 100,000 hours;

Control System

Adopt BOCHU intelligent visual laser control system, human-machine interface, simple to learn and easy to operate;

Intuitively adjust laser power, gas type and pressure.
Intelligent edge search, automatic positioning.
Support multi-type file import, intelligent typesetting, automatic sequence generation, process visualization.

Cutting Head

Adopt brand laser cutting head and laser lens (Raytools/BOCHU), with smaller focus spot, finer cutting line, higher cutting accuracy, higher processing quality, lower cost, longer service life and wider application range.

Automatic focus, can quickly change different focal lengths to meet the cutting of metals of different thicknesses;
Integrated temperature sensing technology, CNC calculation compensation to avoid thermal lens effect;
360-degree intelligent obstacle avoidance during air movement to protect the cutting head;
Equipped with multiple fiber interfaces, it can adapt to various fiber lasers;
Knob-type focusing, precise and flexible cutting, adjustable range 15mm, accuracy 0.05mm

Servo Motor & Servo Drive

With China Bochu, Taiwan Delta (Optional) or Japan FUJI (optional) servo motor, excellent performance and long service life. Low noise, low temperature, smooth operation, fast response, high precision, power.
Adopt China Bochu, Taiwan Delta (Optional) or Japan FUJI (optional) servo drive to ensure the stability and accuracy of work.

Servo Motor

Servo Drive

Cooling System

Adopt Wuhan Hanli brand laser special chiller

Dual temperature control technology: high and low temperature water dual control, accurately meet the constant temperature requirements of laser cavity and output port.
Safety and stability: ensure the safe and stable operation of laser and improve work efficiency.
Intelligent monitoring: real-time monitoring of over-temperature, flow, water level and water quality, equipped with sound and light alarm to ensure equipment safety.

Reducer

French brand MOTOVARIO reducer, excellent bearing capacity, more powerful performance.

High precision transmission, help the equipment to operate efficiently.
Low noise operation, improve the working environment comfort.
IP65 protection grade, 90 degrees continuous operation, suitable for harsh working conditions.

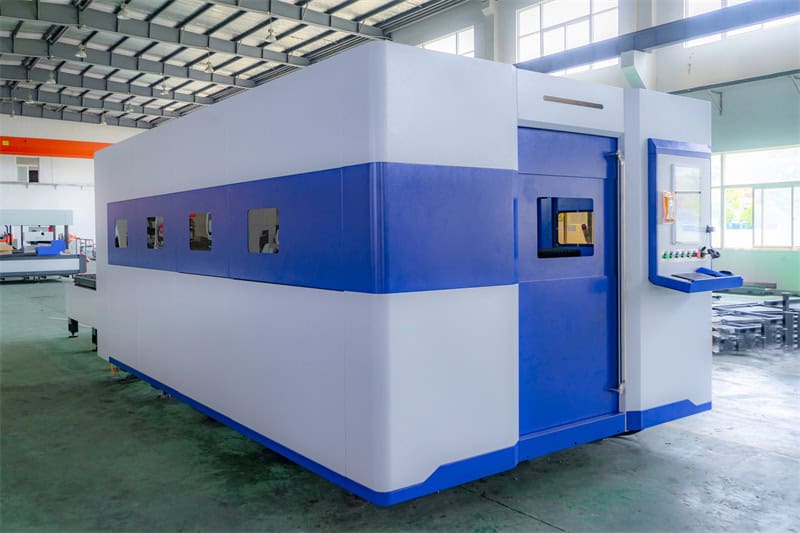

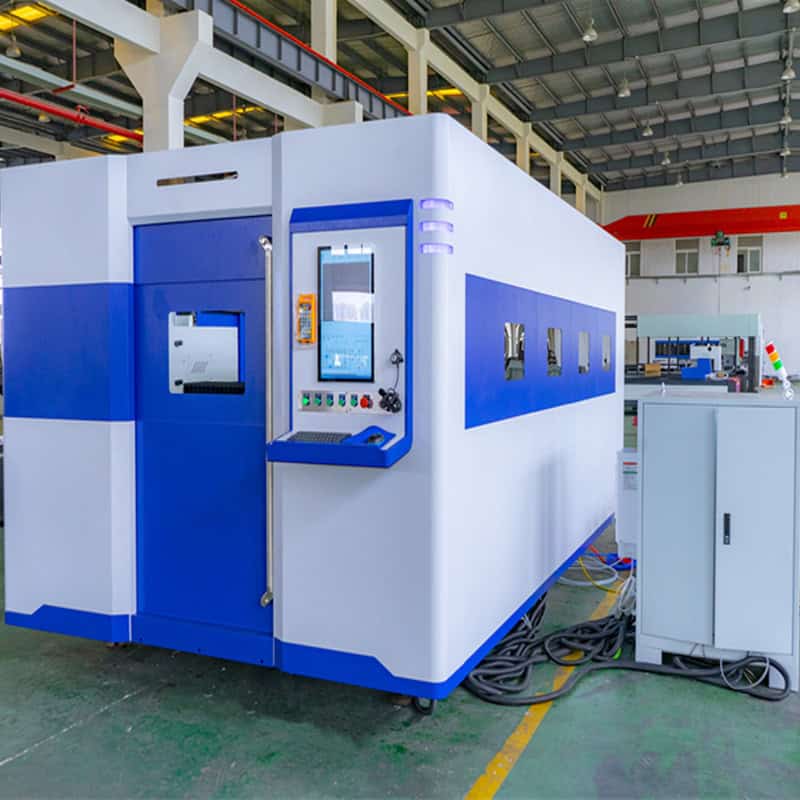

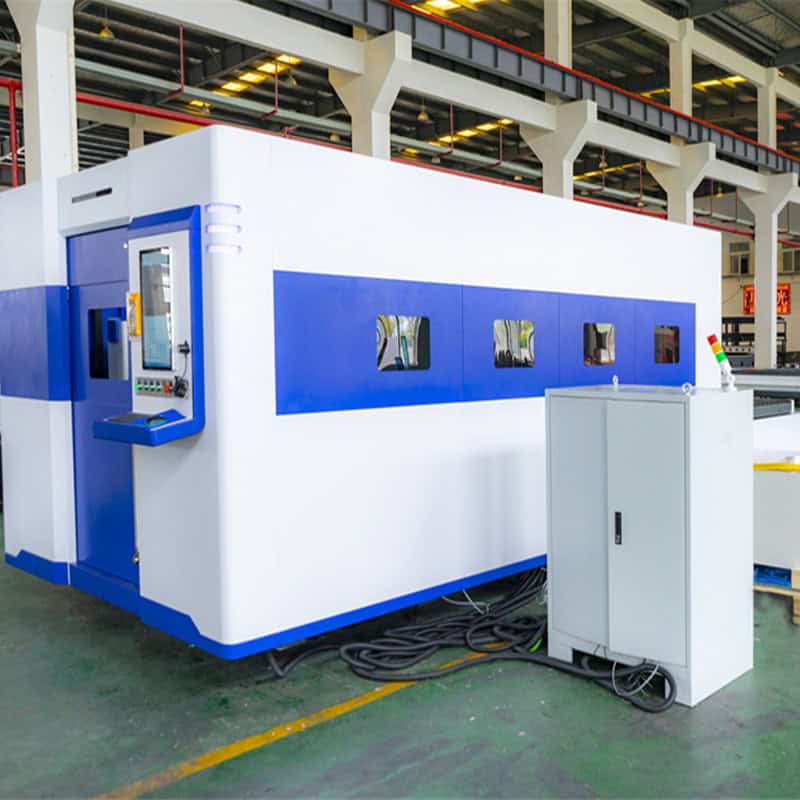

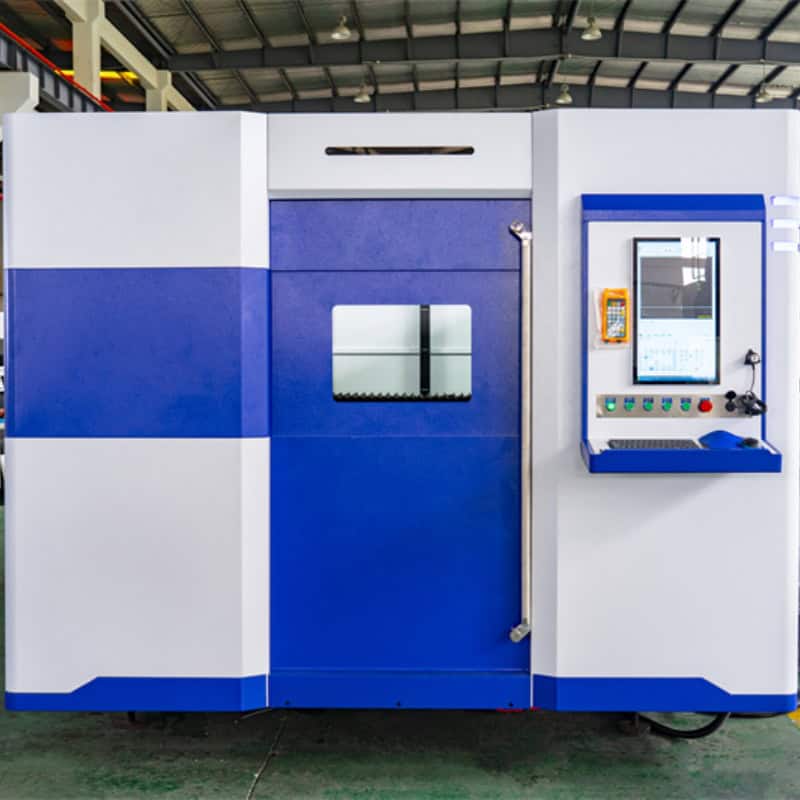

External Enclosure Design

Fully closed protection improves using security; laser protection glass protect human beings from laser radiation.

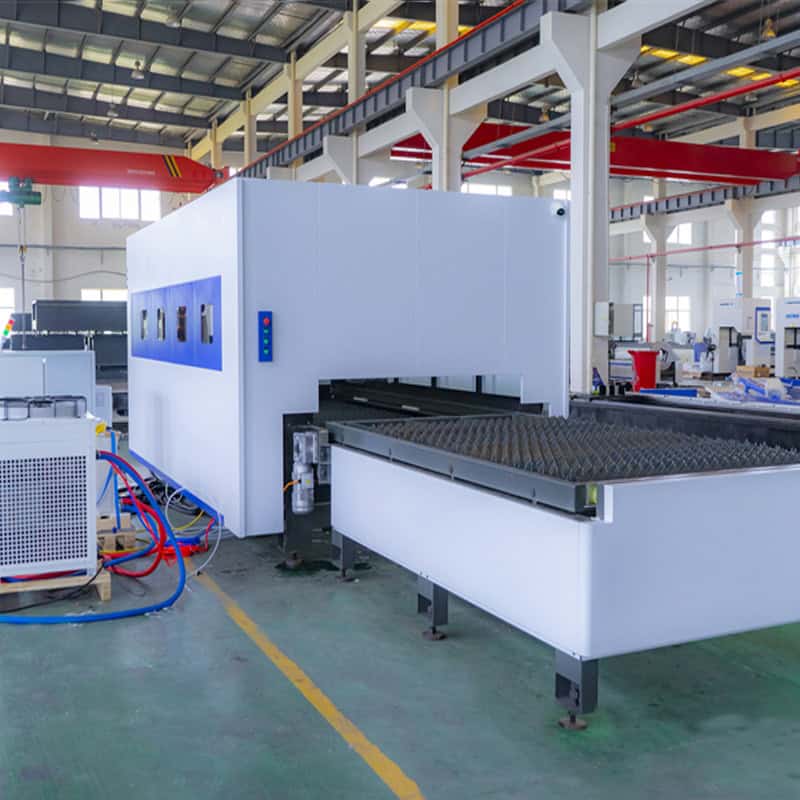

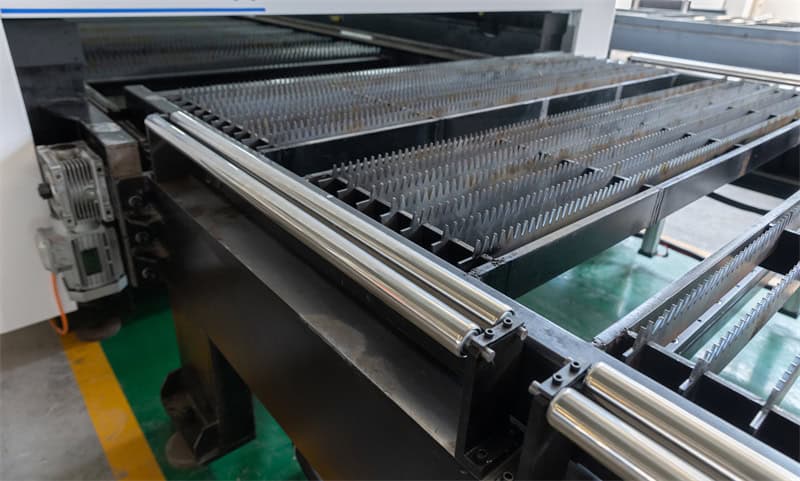

Exchange Platform

Dual workstations can be exchanged simultaneously, and the platform can complete the exchange in 8S;
Easy loading and unloading, board cutting and loading and unloading can be carried out simultaneously, saving auxiliary time for loading and unloading;
The gear rack transmission method is stable and has high precision, and is more efficient compared to the traditional ball screw transmission.

Control System

Raymax open fiber laser cutting machine adopts advanced Fscut control system to bring efficient, accurate and intelligent cutting experience. The Fscut system has intelligent parameter adjustment, real-time monitoring and user-friendly interface, convenient operation, excellent performance, to meet a variety of cutting needs.

1. FSCUT 2000

Orientation: Economical, suitable for sheet cutting
Power range: 1-4kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Support for” fast cutting “and” smooth micro-joint “;
Automatic edge finding function;
Compatible with a variety of laser cutting heads and servo drivers;
Supports cutting of various materials (carbon steel, stainless steel, aluminum alloy, etc.)
Application scenario: Small business or startup

2. FSCUT 3000

Orientation: Medium power, support more automation functions
Power range: 1.5-6kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics :
Supports integration of multiple laser heads and cutting tools
Provides higher cutting speed and accuracy
Support auto focus, automatic edge finding, intelligent path optimization
Increased anti-jamming capability
Application scenario: Medium-sized enterprise

3. FSCUT 4000

Orientation: Efficient cutting to support complex tasks
Power range: 1.5-8kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Supports multi-axis linkage and high-precision motion control
Provides complex cutting paths and high-speed cutting
Supports auto focus, automatic edge finding, intelligent layout and path optimization
Supports remote monitoring and diagnostics
Application scenario: Medium and large enterprises

4. FSCUT 5000

Orientation: High power, focus on thick plate cutting
Power range: More than 8kW
Hardware architecture: Advanced EtherCAT bus technology
Functional characteristics:
Designed for thick plate cutting
Supports high power laser devices
Provides autofocus, automatic edge finding, intelligent path optimization, and dynamic punching
Strong anti-interference ability to ensure stability in high power environment
Application scenario: Large enterprise

5. FSCUT 6000

Orientation: Medium and high power, support multi-material processing
Power range: 6-15kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Support a variety of cutting modes, suitable for a variety of material processing
Provides autofocus, automatic edge finding, and path optimization
Supports remote monitoring and diagnosis
Efficient cutting speed and precision
Application scenario: Medium and large enterprises

6. FSCUT 8000

Orientation: Ultra-high power for complex tasks
Power range: Over 8kW
Hardware architecture: Using EtherCAT bus technology
Functional characteristics:
Designed for ultra-high power laser equipment
Supports thick plate and complex cutting tasks
Provides autofocus, automatic edge finding, intelligent path optimization, and dynamic punching
Strong anti-interference ability and system stability
Application scenario: Large enterprise

Cutting Head

Raymax cutters lead the industry with RayTools BM110, BM111, BS04K and BM06K cutting heads across the line, providing superior low-power cutting performance.
The high power series is equipped with with Boci BLT 3 series, BLT 4 series, BLT 6 series, BLT 8 series cutting heads, which support strong cutting capacity up to 40kW.
Whether it is precision machining or thick plate cutting, Raymax can bring you efficient and stable solutions to help efficient, accurate and stable machining experience!

RayTools BM110

RayTools BM111

RayTools BS04K

RayTools BM06K

Boci BLT-4

Boci BLT-6-Series

Fiber Laser Generator

Raymax cutting machine supports the selection of MAX, IPG and RAYCUS three brand laser generators to meet different customer needs.
Whether it’s the cost performance of MAX, the cutting power of IPG, or the flexibility and efficiency of RAYCUS, Raymax offers you a variety of options to help you achieve high quality machining!
