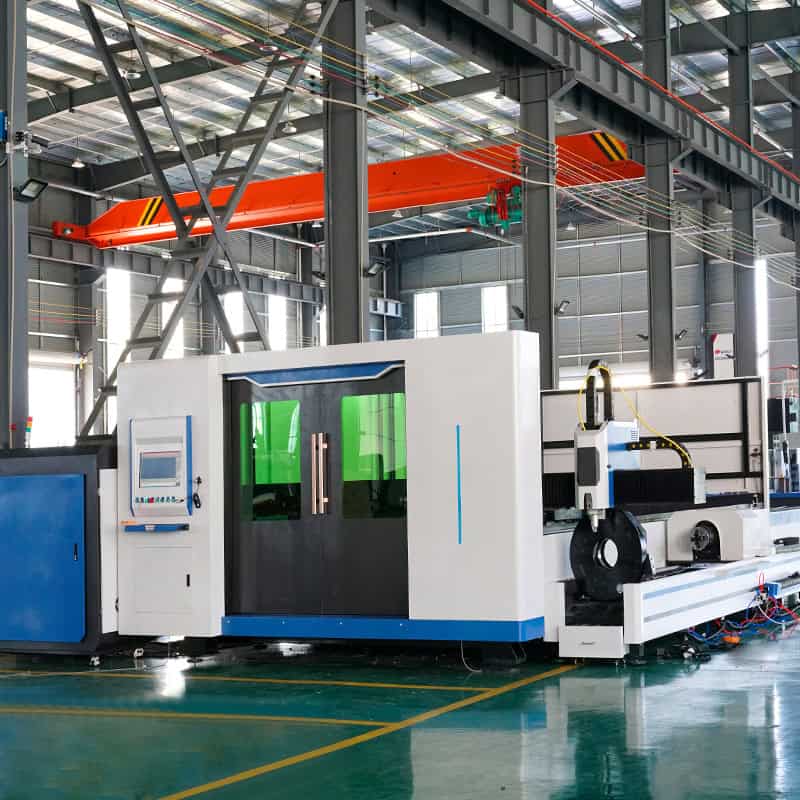

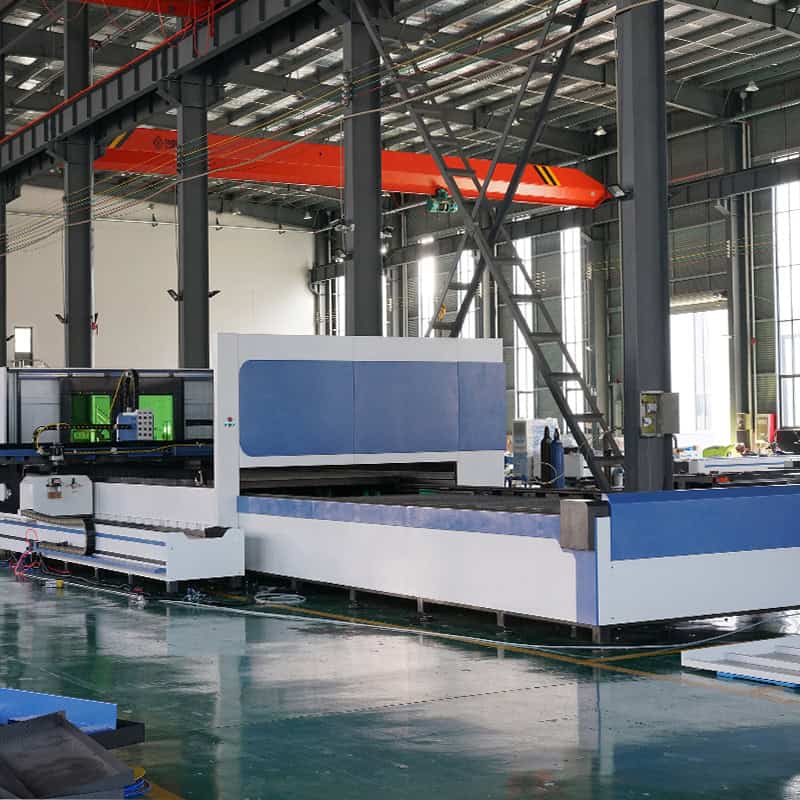

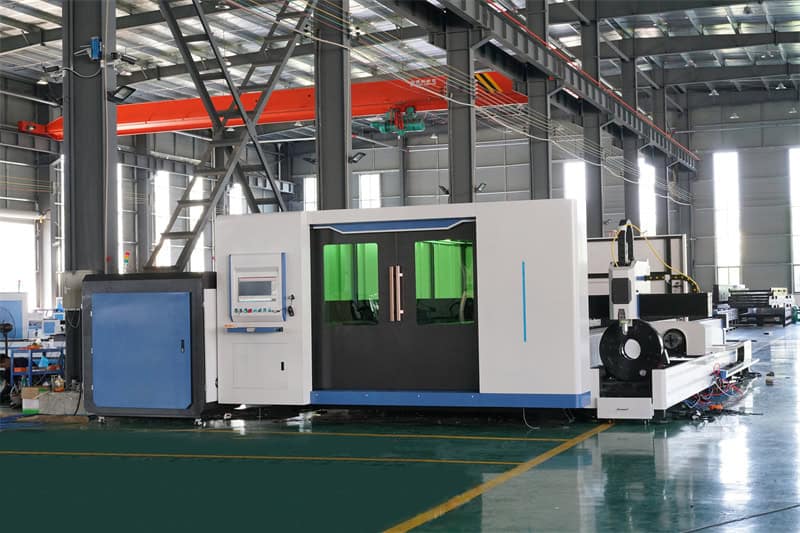

Enclosed type fiber laser cutter for plate and tube

Fully enclosed design, cuts plate, cuts tube, safe and efficient!

Multiple models available—customization supported
Suitable for Cutting Various Metal Plates
No Burrs, No Slag, No Black Edges, No Deformation
Capable of Cutting Both Thick and Thin Plates
Auto-Focusing Laser Head & Wide focus adjustment range
High Precision, High Speed, Powerful Performance

3-year Warranty
Global Transportation

Enclosed type fiber laser cutter for plate and tube

Enclosed type fiber laser cutter for plate and tube

category Laser Cutting Machines

Professional Metal Plate Laser Cutting Machine

Step 1: Select the basic model

Size and power

Choose laser power of 3000 x 1500 mm, 4000 x 2000 mm, 6000 x 2000 mm ，6000 x 2500 mm and 1-60 kW.

Step 2: Choose your package

According to your needs

Depending on your goals, you can choose and combine up to 10 different configuration packages (including bed, beam, servo system, control system, laser, cutting head, water cooler, reducer, linear guide, gas proportional valve and other common laser accessories).

Step 3: Send us your configuration

Add more options

After you send us your inquiry, we will contact you as soon as possible to provide a quote. Until then, you can still add more options to create the perfect cutting setup that meets your needs.

Description
Technical Data
Standard Equipment
Upgrade Solutions

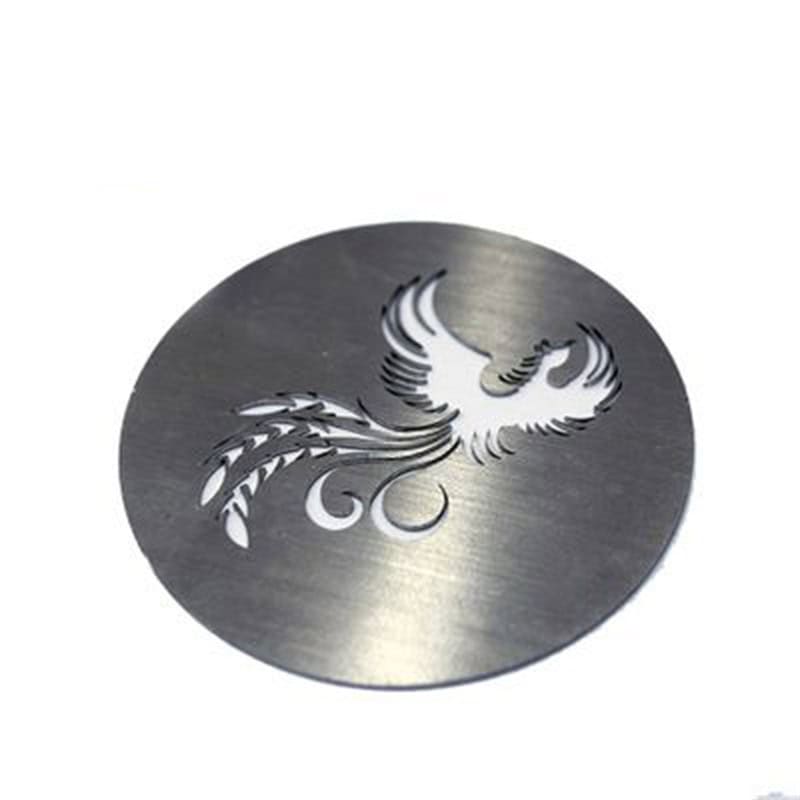

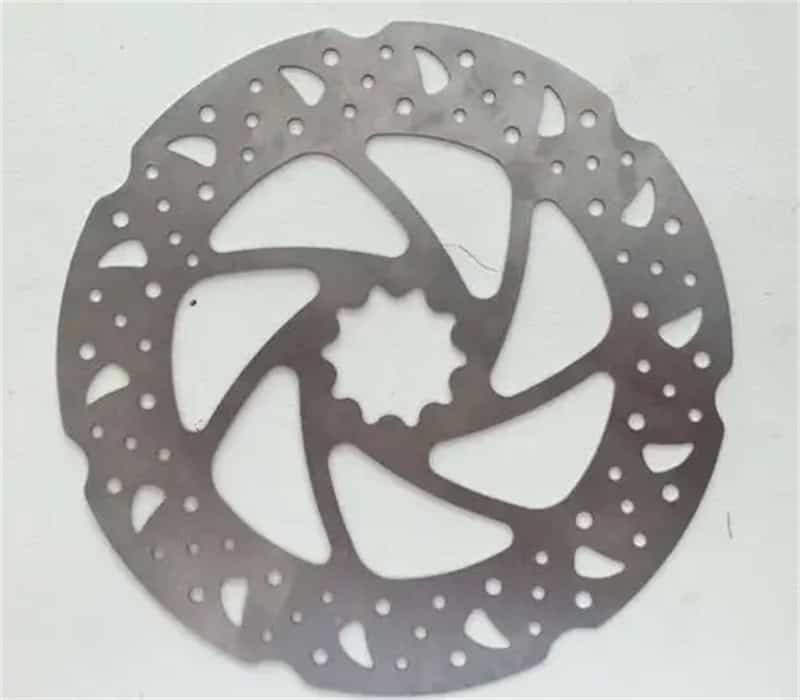

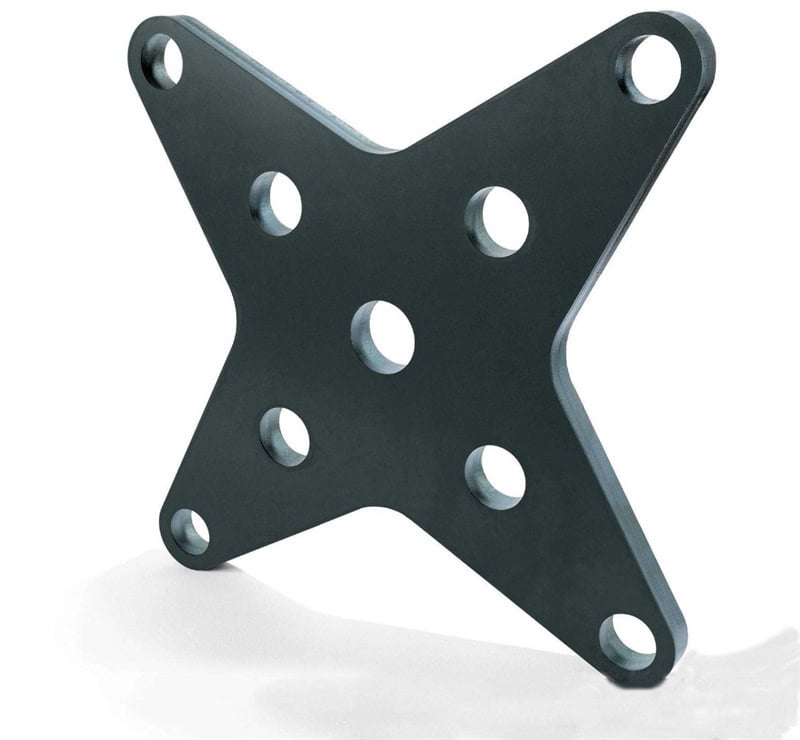

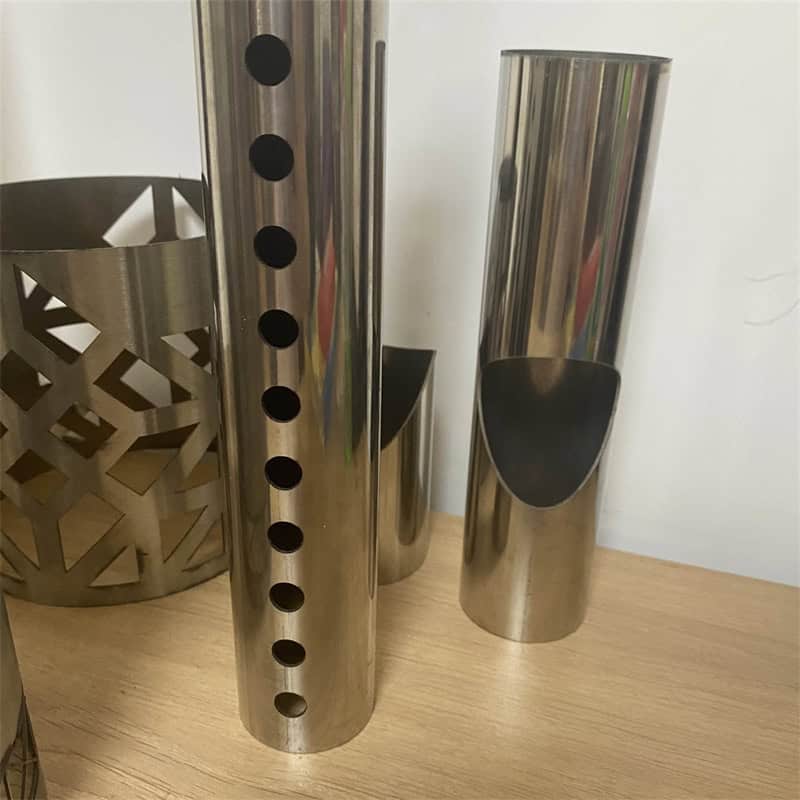

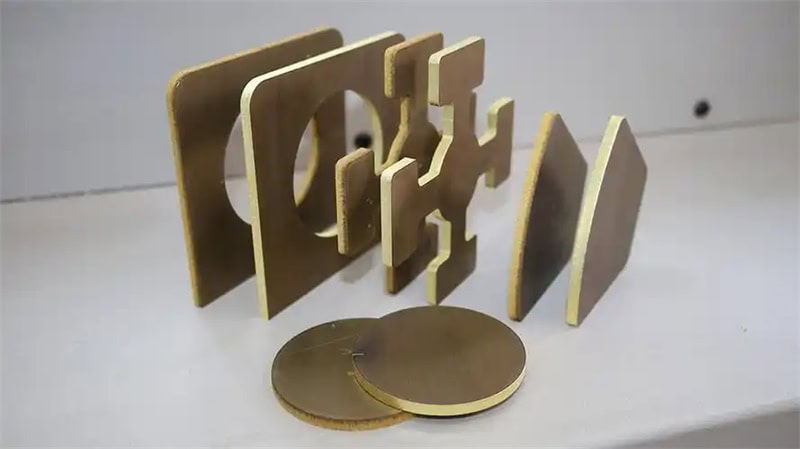

Cut Sample
Packaging & Transportation

Description

Experience efficient and accurate cutting technology, closed sheet metal and pipe fiber laser cutting machine focuses on cutting general sheet metal and a variety of common pipes (square, round, rectangular), fully surrounded design effectively prevent laser radiation leakage, control smoke and reduce noise, create a green working environment. Its main advantages are:

Closed cutting platform: improve purification efficiency and reduce lens pollution.
Advanced optical and control system: equipped with servo motor drive, rack drive, high-precision chuck and servo reduction system to ensure cutting stability and accuracy.
Push tube cutting method: Integrated with specialized pipe cutting software to optimize the cutting process and adapt to multiple material types.

Features

Plate and tube integrated machine design: the plate and tube cutting functions are combined into one, one machine can meet the cutting needs of various material types, providing a higher cost performance.
Cost-effectiveness: Reduce production costs by maximizing material utilization and eliminating the need for molds.
Annealing process: The use of high-rigidity reinforced welding bed, secondary annealing, effectively eliminate material stress, enhance the ductility of the material.
Equipped with automatic switchboard: supports simultaneous cutting and loading and unloading operations in different areas, increasing efficiency by 1 to 1.5 times.
High return on investment: Provide high-speed, precise cutting, increase product value, extend equipment life, and achieve greater overall return.
Intelligent numerical control system: intuitive graphical interface, support mouse control, easy to learn and operate, promote seamless interaction between machine and operator.

Closed fiber laser plate and pipe cutting machine – your ideal cutting solution!

More information about RAYMAX

Download Catalogue

Parameters

Product Model	RX-3015	RX-6015	RX-4020	RX-6020
Working Area	3000*1500mm	6000*1500mm	4000*2000mm	6000*2000mm
Laser Power	1000W、1500W、2000W、3000W、4000W
Positioning Accuracy	±0.03mm/m
Repeated Positioning Accuracy	±0.02mm
Voltage	380VAC ± 10%/50Hz
Cutting Pipe Performance	RX-3015GT	RX-6015GT	RX-4020GT	RX-6020GT
Maximum Moving Speed	120m/min
Maximum Cutting Speed	60m/min
Drive System	High precision gear and rack + high precision linear guide rail
Plate Cutting Performance	RX-3015GT	RX-6015GT	RX-4020GT	RX-6020GT
Pipe Dimension	Circular tube 20-200mm/ Square tube 20×20mm -150×150mm
Processing Tube Type	Round tubes, rectangular tubes, elliptical tubes, U tubes etc.
Maximum Pipe Length	3000mm -15000mm
Fast Moving Speed	30m/ min
Rotational Speed	150r/ min
Drive System	High precision gear and rack + high precision linear guide rail

Stable and Solid Bed

The bed is composed of a number of welded rectangular tubes, with internal reinforcement, and through 600℃ high temperature annealing to remove stress, improve the ductility, compressive strength and hardness of the bed, to ensure the rigidity and stability of the machine tool high-speed movement, reduce thermal shock.

Transmission System

The machine uses a combination of German ROR rack and Taiwanese HIWIN linear guide rail for more durability, in addition to high quality helical rack and pinion to ensure high precision.
The rack and pinion on the XY shaft are imported from high-quality sources, and the high hardness of the material makes the frame more wear resistant.
Optional linear guide brand: Japan SMG/ Germany HEREN

1. MAX Laser Generatorr

2. RAYCUS Laser Generator

3. IPG Laser Generator

Fiber Laser Generator

Using well-known brand laser, MAX / RAYCUS / IPG optional , manufacturer direct supply, quality assurance.

Fiber laser has high integration and easy operation;
The internal structure is compact and light, easy to install, and basically maintenance-free operation.
Service life of more than 100,000 hours;

Control System

Adopt BOCHU intelligent visual laser control system, human-machine interface, simple to learn and easy to operate;

Intuitively adjust laser power, gas type and pressure.
Intelligent edge search, automatic positioning.
Support multi-type file import, intelligent typesetting, automatic sequence generation, process visualization.

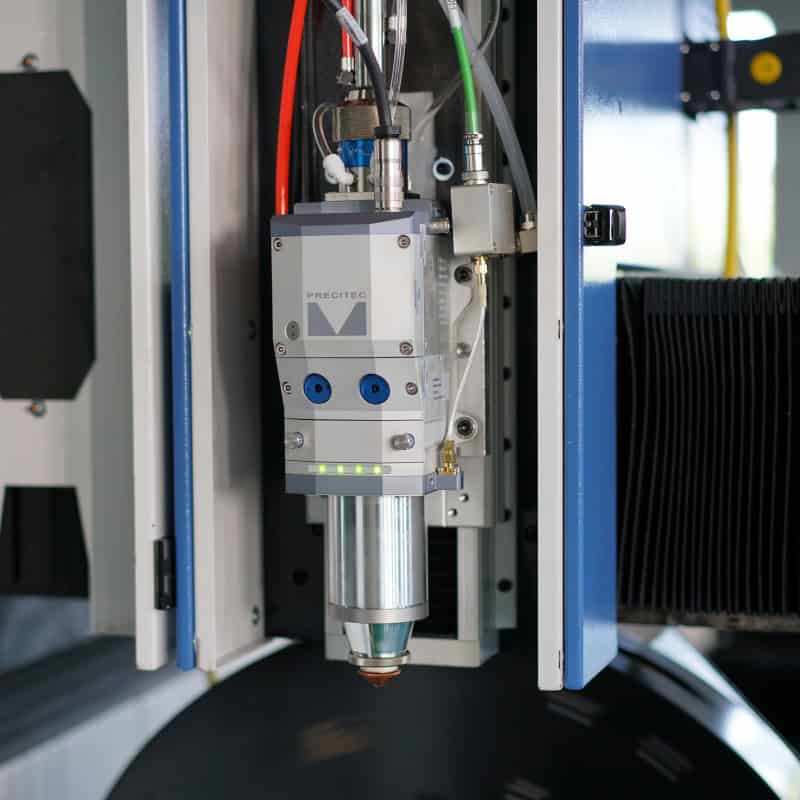

Cutting Head

Adopt brand laser cutting head and laser lens (Raytools/BOCHU), with smaller focus spot, finer cutting line, higher cutting accuracy, higher processing quality, lower cost, longer service life and wider application range.

Automatic focus, can quickly change different focal lengths to meet the cutting of metals of different thicknesses;
Integrated temperature sensing technology, CNC calculation compensation to avoid thermal lens effect;
360-degree intelligent obstacle avoidance during air movement to protect the cutting head;
Equipped with multiple fiber interfaces, it can adapt to various fiber lasers;
Knob-type focusing, precise and flexible cutting, adjustable range 15mm, accuracy 0.05mm

Servo Motor & Servo Drive

With China Bochu, Taiwan Delta (Optional) or Japan FUJI (optional) servo motor, excellent performance and long service life. Low noise, low temperature, smooth operation, fast response, high precision, power.
Adopt China Bochu, Taiwan Delta (Optional) or Japan FUJI (optional) servo drive to ensure the stability and accuracy of work.

Servo Motor

Servo Drive

Cooling System

Adopt Wuhan Hanli brand laser special chiller

Dual temperature control technology: high and low temperature water dual control, accurately meet the constant temperature requirements of laser cavity and output port.
Safety and stability: ensure the safe and stable operation of laser and improve work efficiency.
Intelligent monitoring: real-time monitoring of over-temperature, flow, water level and water quality, equipped with sound and light alarm to ensure equipment safety.

Reducer

French brand MOTOVARIO reducer, excellent bearing capacity, more powerful performance.

High precision transmission, help the equipment to operate efficiently.
Low noise operation, improve the working environment comfort.
IP65 protection grade, 90 degrees continuous operation, suitable for harsh working conditions.

External Enclosure Design

Fully closed protection improves using security; laser protection glass protect human beings from laser radiation.

Exchange Platform

Dual workstations can be exchanged simultaneously, and the platform can complete the exchange in 8S;
Easy loading and unloading, board cutting and loading and unloading can be carried out simultaneously, saving auxiliary time for loading and unloading;
The gear rack transmission method is stable and has high precision, and is more efficient compared to the traditional ball screw transmission.

Automatic Lubrication System

The mechanical core transmission components of the laser cutting machine, such as guides, racks, etc., are equipped with a fast lubrication system without blind spots. The control method of equipment operation is used before refueling, which avoids the non-uniformity of static refueling and greatly improves the lubrication efficiency and quality.

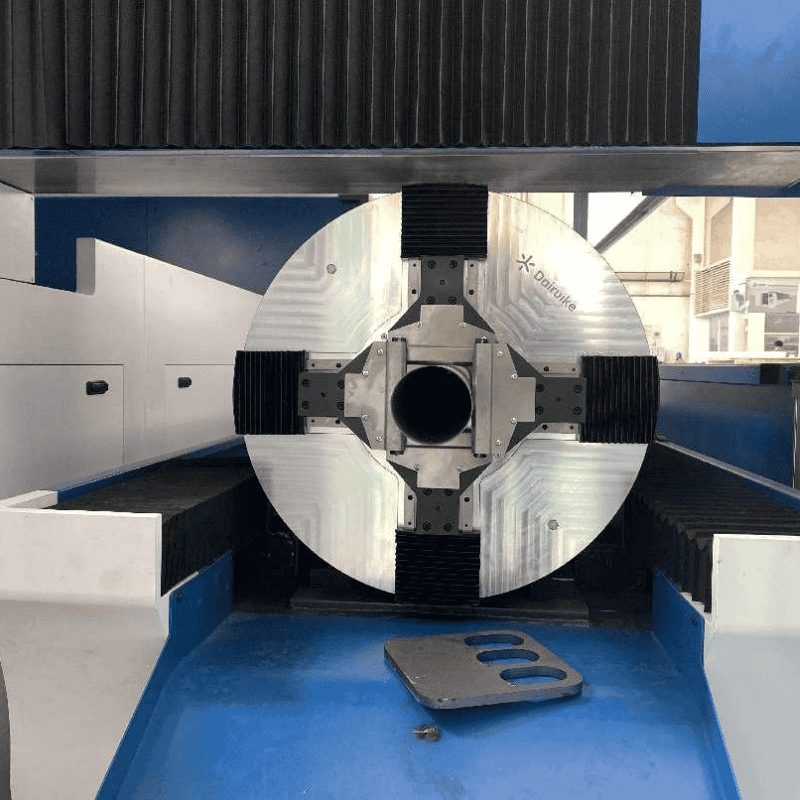

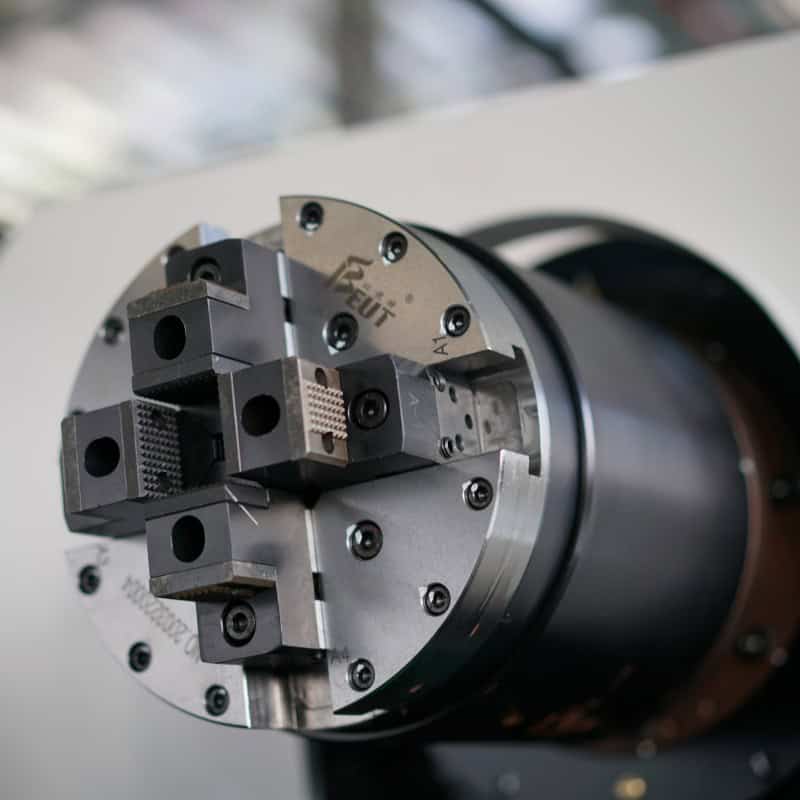

Self-centering Chuck

With advanced gear transmission mode, self-centering electric chuck with gear transmission system improves transmission efficiency, long service life and high operational reliability.

Control System

Raymax open fiber laser cutting machine adopts advanced Fscut control system to bring efficient, accurate and intelligent cutting experience. The Fscut system has intelligent parameter adjustment, real-time monitoring and user-friendly interface, convenient operation, excellent performance, to meet a variety of cutting needs.

1. FSCUT 2000

Orientation: Economical, suitable for sheet cutting
Power range: 1-4kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Support for” fast cutting “and” smooth micro-joint “;
Automatic edge finding function;
Compatible with a variety of laser cutting heads and servo drivers;
Supports cutting of various materials (carbon steel, stainless steel, aluminum alloy, etc.)
Application scenario: Small business or startup

2. FSCUT 3000

Orientation: Medium power, support more automation functions
Power range: 1.5-6kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics :
Supports integration of multiple laser heads and cutting tools
Provides higher cutting speed and accuracy
Support auto focus, automatic edge finding, intelligent path optimization
Increased anti-jamming capability
Application scenario: Medium-sized enterprise

3. FSCUT 4000

Orientation: Efficient cutting to support complex tasks
Power range: 1.5-8kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Supports multi-axis linkage and high-precision motion control
Provides complex cutting paths and high-speed cutting
Supports auto focus, automatic edge finding, intelligent layout and path optimization
Supports remote monitoring and diagnostics
Application scenario: Medium and large enterprises

4. FSCUT 5000

Orientation: High power, focus on thick plate cutting
Power range: More than 8kW
Hardware architecture: Advanced EtherCAT bus technology
Functional characteristics:
Designed for thick plate cutting
Supports high power laser devices
Provides autofocus, automatic edge finding, intelligent path optimization, and dynamic punching
Strong anti-interference ability to ensure stability in high power environment
Application scenario: Large enterprise

5. FSCUT 6000

Orientation: Medium and high power, support multi-material processing
Power range: 6-15kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Support a variety of cutting modes, suitable for a variety of material processing
Provides autofocus, automatic edge finding, and path optimization
Supports remote monitoring and diagnosis
Efficient cutting speed and precision
Application scenario: Medium and large enterprises

6. FSCUT 8000

Orientation: Ultra-high power for complex tasks
Power range: Over 8kW
Hardware architecture: Using EtherCAT bus technology
Functional characteristics:
Designed for ultra-high power laser equipment
Supports thick plate and complex cutting tasks
Provides autofocus, automatic edge finding, intelligent path optimization, and dynamic punching
Strong anti-interference ability and system stability
Application scenario: Large enterprise

Cutting Head

Raymax cutters lead the industry with RayTools BM110, BM111, BS04K and BM06K cutting heads across the line, providing superior low-power cutting performance.
The high power series is equipped with with Boci BLT 3 series, BLT 4 series, BLT 6 series, BLT 8 series cutting heads, which support strong cutting capacity up to 40kW.
Whether it is precision machining or thick plate cutting, Raymax can bring you efficient and stable solutions to help efficient, accurate and stable machining experience!

RayTools BM110

RayTools BM111

RayTools BS04K

RayTools BM06K

Boci BLT-4

Boci BLT-6-Series

Fiber Laser Generator

Raymax cutting machine supports the selection of MAX, IPG and RAYCUS three brand laser generators to meet different customer needs.
Whether it’s the cost performance of MAX, the cutting power of IPG, or the flexibility and efficiency of RAYCUS, Raymax offers you a variety of options to help you achieve high quality machining!
