Tube fiber laser cutter

category Laser Cutting Machines

Professional Metal Plate Laser Cutting Machine

Step 1: Select the basic model

Size and power

Choose laser power of 160-6M, 160-8M, 160-12M, 240-6M, 240-8M, 350-6M and 1-60 kW.

Step 2: Choose your package

According to your needs

Depending on your goals, you can choose and combine up to 10 different configuration packages (including bed, beam, servo system, control system, laser, cutting head, water cooler, reducer, linear guide, gas proportional valve and other common laser accessories).

Step 3: Send us your configuration

Add more options

After you send us your inquiry, we will contact you as soon as possible to provide a quote. Until then, you can still add more options to create the perfect cutting setup that meets your needs.

Description
Technical Data
Standard Equipment
Upgrade Solutions

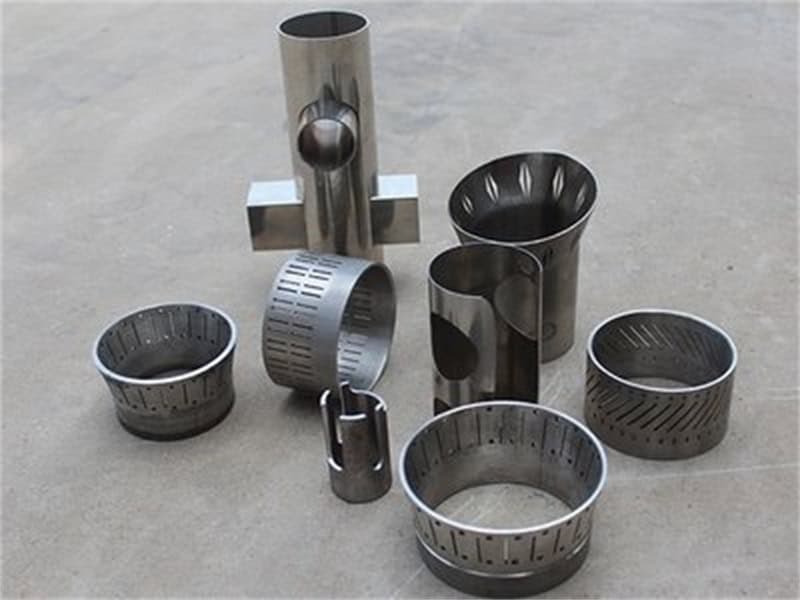

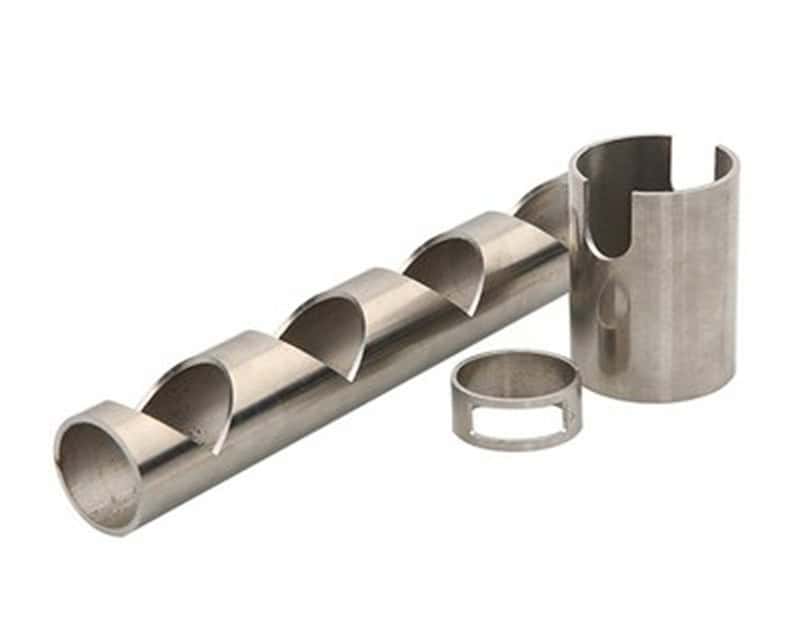

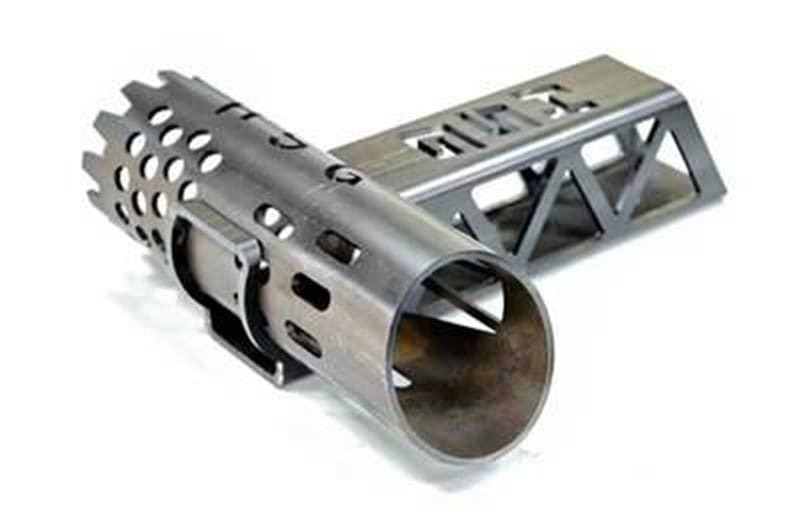

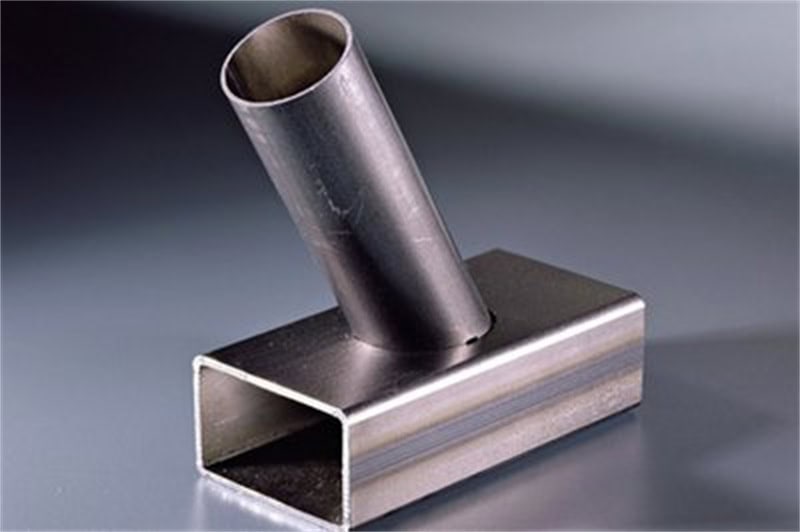

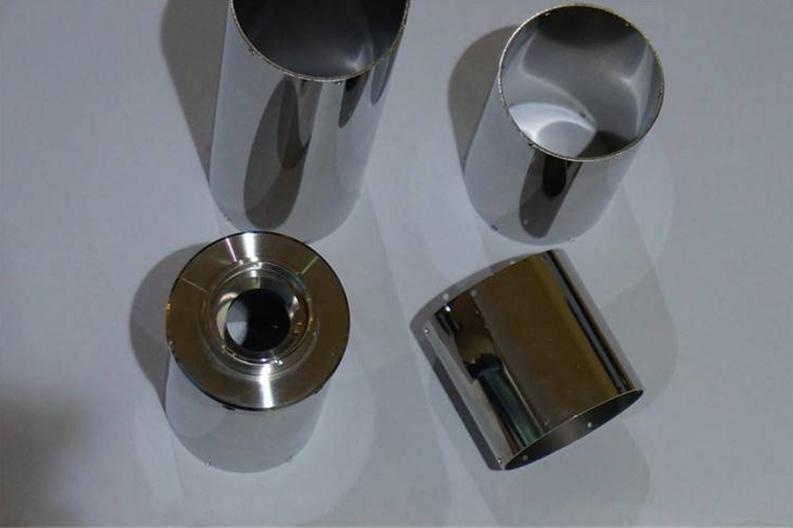

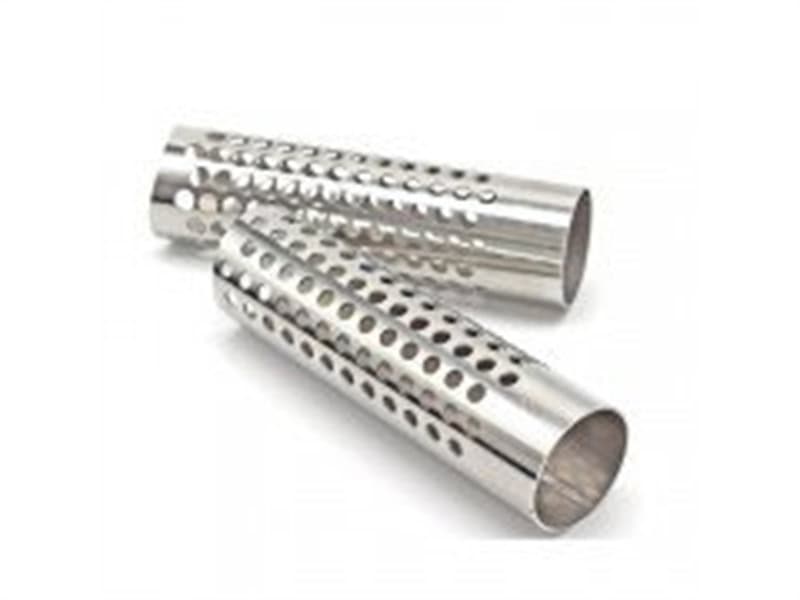

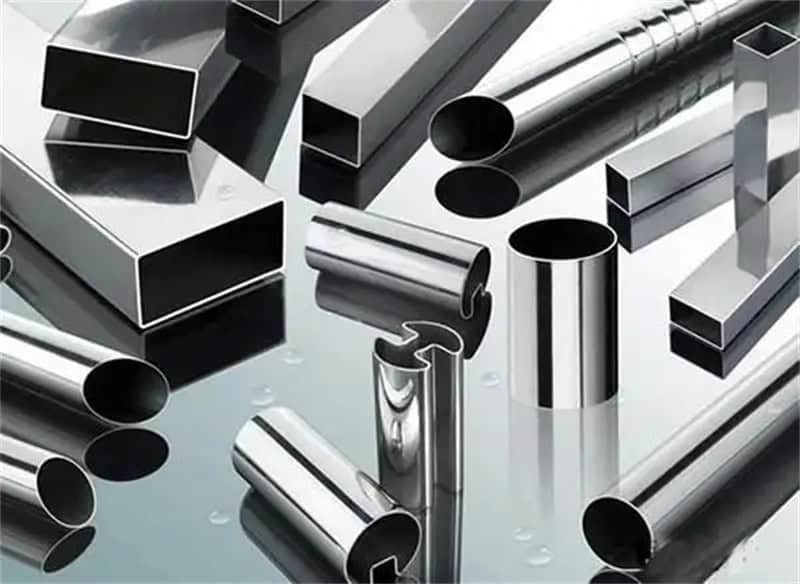

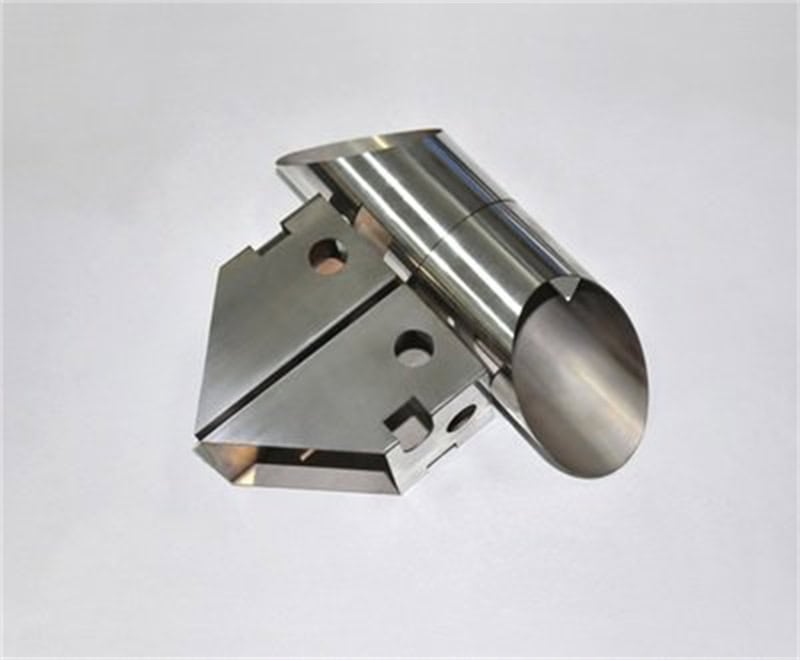

Cut Sample
Packaging & Transportation

Description

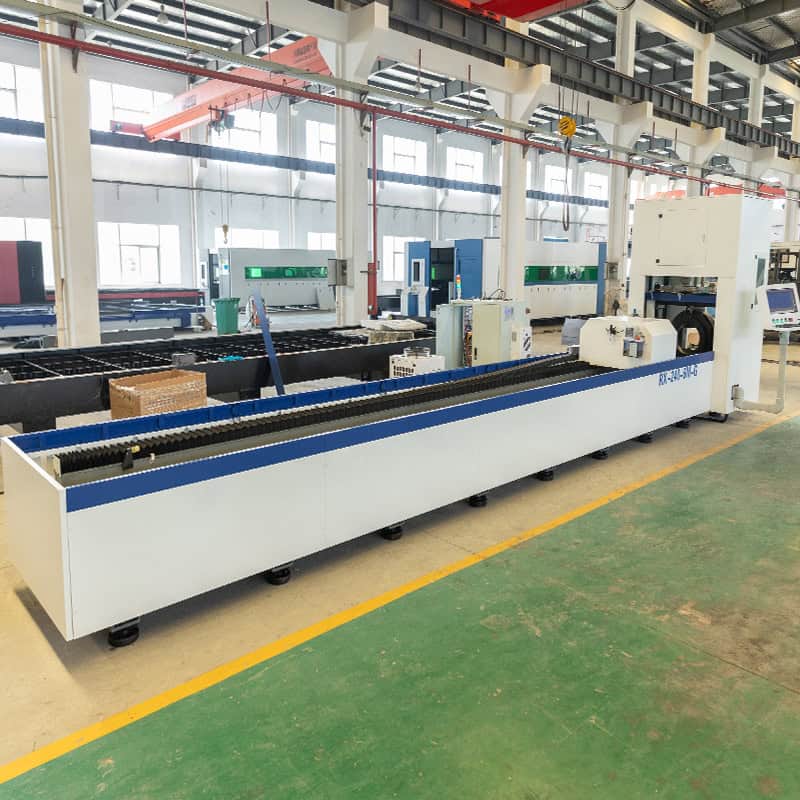

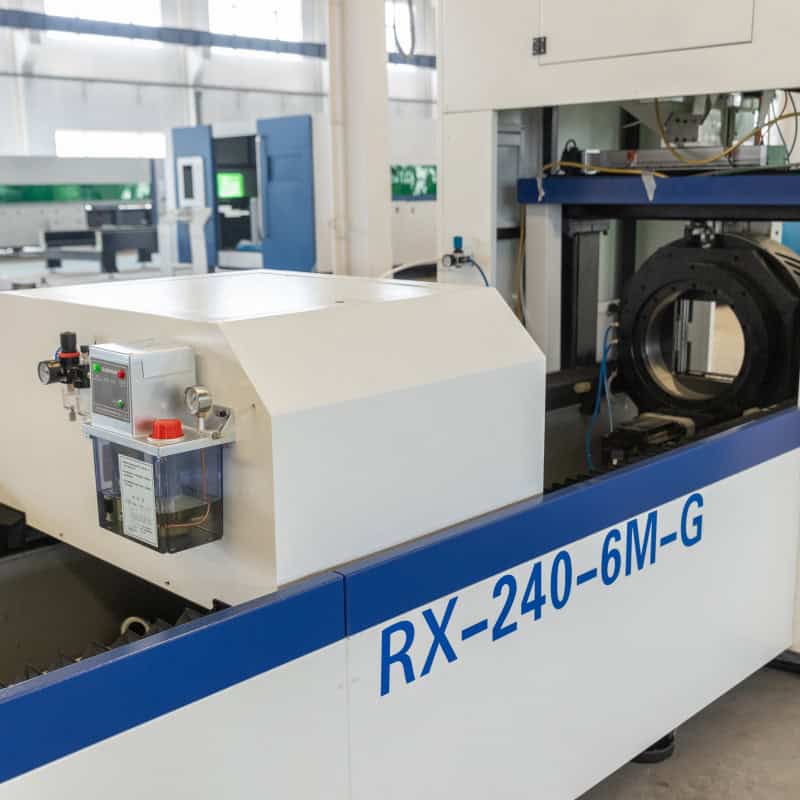

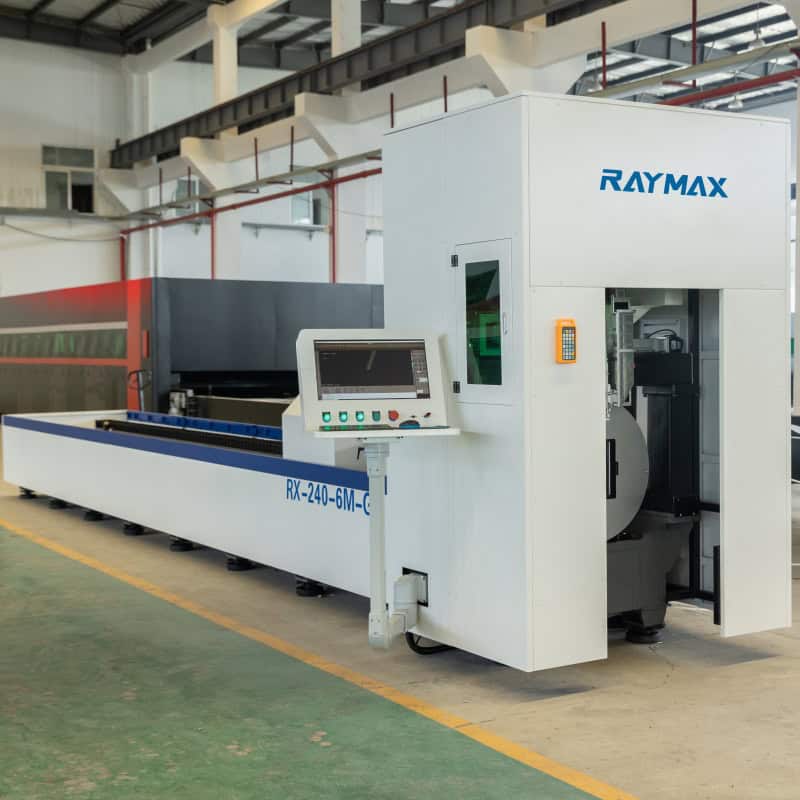

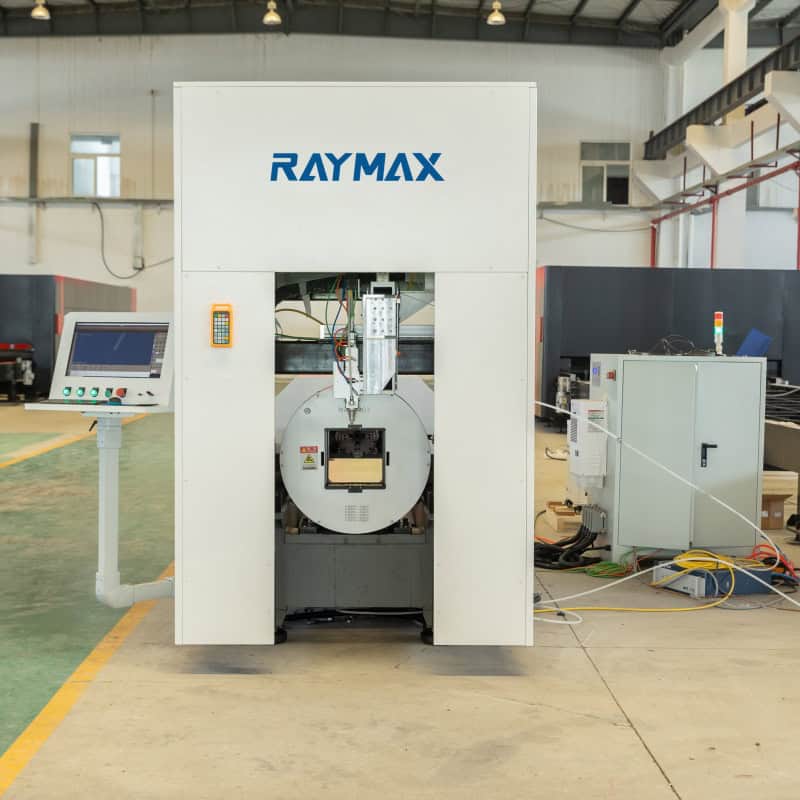

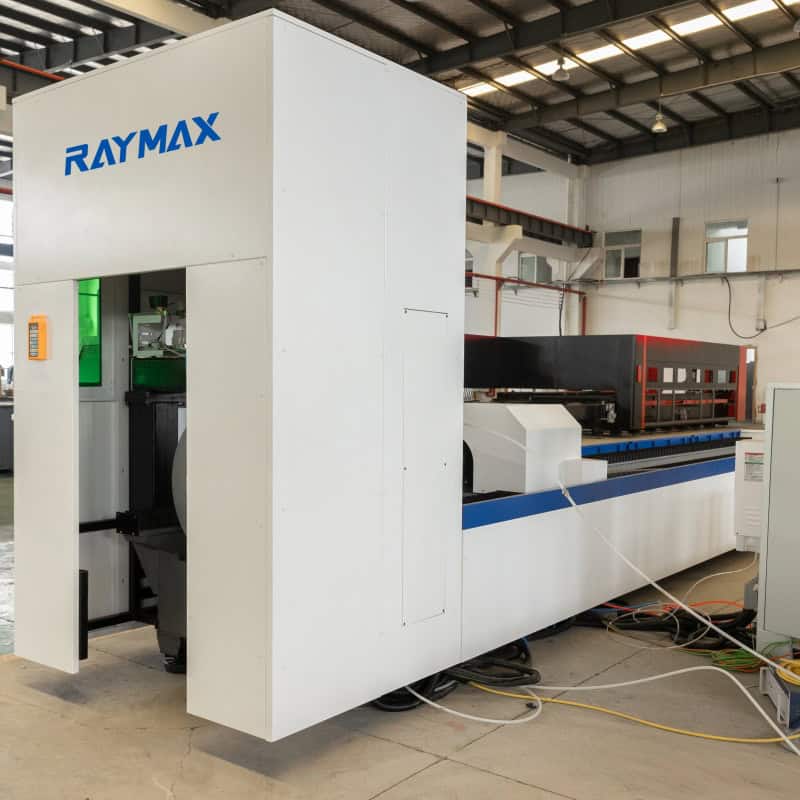

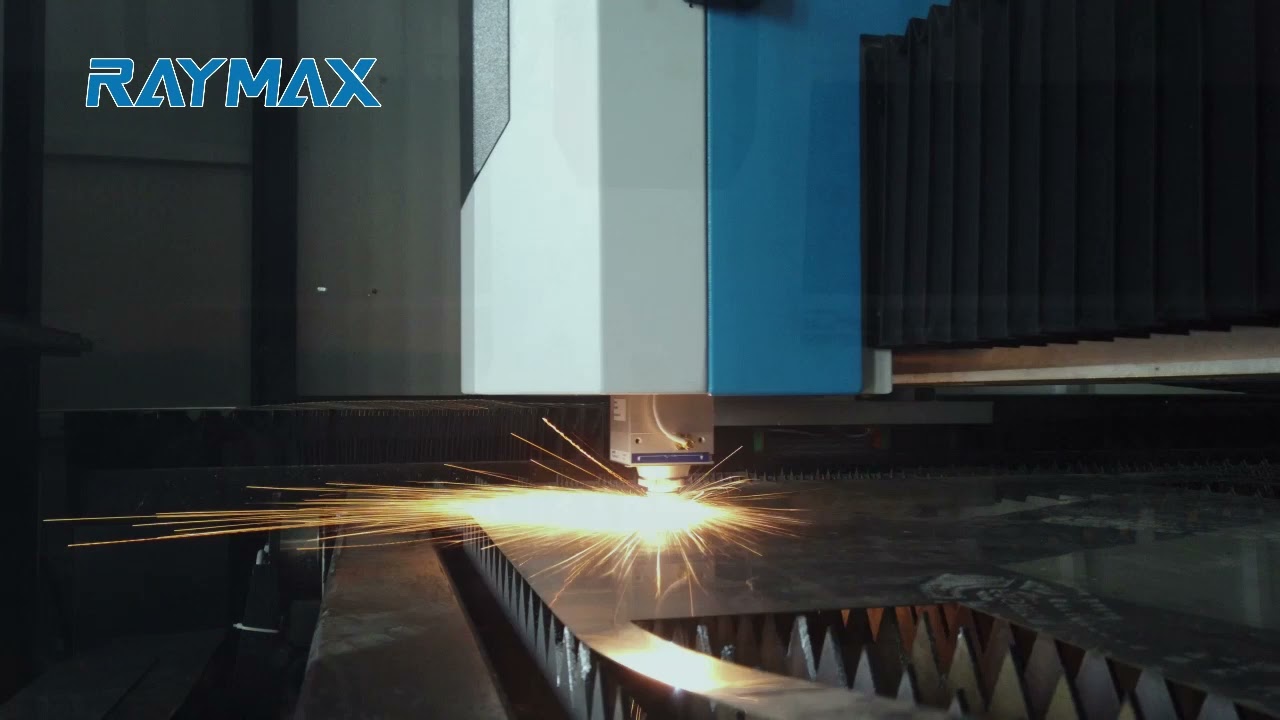

The tube laser cutting machine is a high-precision, high-efficiency equipment designed for tube processing. It can easily cut various shapes of tubes such as round tubes, square tubes, and oval tubes. It is suitable for various metal materials such as carbon steel, stainless steel, aluminum and alloys, copper and alloys.
It achieves burr-free cutting, high cutting accuracy, small thermal impact, almost no deformation, and no oxidation on the cross section. It is particularly suitable for batch processing needs of tubes. The material is lossless and deformed during the cutting process, truly achieving both high efficiency and quality.
The tube laser cutting machine uses RAYCUS, IPG laser, which has a compact structure, small size, low energy consumption, and stable performance. It is equipped with an advanced chuck clamping system to automatically adjust the clamping force to ensure that the thin tube is clamped without damage. Whether it is cutting quality or cost performance, it performs well!

Features

High precision cutting: Chuck and push cutting method combined, centering accuracy and machining precision is very high.
Fiber laser technology: laser flexible transmission, compact cutting head, non-reflective lenses, basically maintenance-free, minimal loss.
Strong compatibility: Four-jaw self-centering chuck, supports cutting of square tubes, round tubes, rectangular tubes and various special-shaped tubes.
Flexible customization range: The diameter and length of the tube can be customized according to needs (standard round tube diameter Φ30~160mm, length 6000mm).
Intelligent operation: Easy to use processing system, real-time feedback processing status, to ensure efficient and orderly processing.
Professional pipe cutting software: seamlessly recognize pipe graphics drawn by 3D software, and support automatic generation of commonly used pipe workpieces.

Choose RAYMAX tube laser cutting machine to help you easily cope with various tube processing challenges!

More information about RAYMAX

Download Catalogue

Parameters

Laser power		1000W-6000W
Maximum pipe length		12000mm
Maximum single pipe weight		25Kg/m
X axis	Positioning accuracy	0.05mm
	Positioning speed	120m/min
	Repeatability accuracy	0.05mm
Y axis	Positioning accuracy	0.05mm
	Positioning speed	80m/min
	Repeatability accuracy	0.03mm
Z axis	Positioning speed	60m/min

Machine Body

Precision deep processing, quenching treatment, stress relief, ensure the stability of the bed, extend the service life of the bed, and prevent deformation for 20 years.
The precision machining of the gantry five sided milling ensures assembly and installation accuracy.

Transmission System

The machine uses a combination of German ROR rack and Taiwanese HIWIN linear guide rail for more durability, in addition to high quality helical rack and pinion to ensure high precision.
The rack and pinion on the XY shaft are imported from high-quality sources, and the high hardness of the material makes the frame more wear resistant.
Optional linear guide brand: Japan SMG/ Germany HEREN

1. MAX Laser Generatorr

2. RAYCUS Laser Generator

3. IPG Laser Generator

Fiber Laser Generator

Using well-known brand laser, MAX / RAYCUS / IPG optional , manufacturer direct supply, quality assurance.

Fiber laser has high integration and easy operation;
The internal structure is compact and light, easy to install, and basically maintenance-free operation.
Service life of more than 100,000 hours;

Control System

Adopt BOCHU intelligent visual laser control system, human-machine interface, simple to learn and easy to operate;

Intuitively adjust laser power, gas type and pressure.
Intelligent edge search, automatic positioning.
Support multi-type file import, intelligent typesetting, automatic sequence generation, process visualization.

Cutting Head

Adopt brand laser cutting head and laser lens (Raytools/BOCHU), with smaller focus spot, finer cutting line, higher cutting accuracy, higher processing quality, lower cost, longer service life and wider application range.

Automatic focus, can quickly change different focal lengths to meet the cutting of metals of different thicknesses;
Integrated temperature sensing technology, CNC calculation compensation to avoid thermal lens effect;
360-degree intelligent obstacle avoidance during air movement to protect the cutting head;
Equipped with multiple fiber interfaces, it can adapt to various fiber lasers;
Knob-type focusing, precise and flexible cutting, adjustable range 15mm, accuracy 0.05mm

Servo Motor & Servo Drive

With China Bochu, Taiwan Delta (Optional) or Japan FUJI (optional) servo motor, excellent performance and long service life. Low noise, low temperature, smooth operation, fast response, high precision, power.
Adopt China Bochu, Taiwan Delta (Optional) or Japan FUJI (optional) servo drive to ensure the stability and accuracy of work.

Servo Motor

Servo Drive

Cooling System

Adopt Wuhan Hanli brand laser special chiller

Dual temperature control technology: high and low temperature water dual control, accurately meet the constant temperature requirements of laser cavity and output port.
Safety and stability: ensure the safe and stable operation of laser and improve work efficiency.
Intelligent monitoring: real-time monitoring of over-temperature, flow, water level and water quality, equipped with sound and light alarm to ensure equipment safety.

Reducer

French brand MOTOVARIO reducer, excellent bearing capacity, more powerful performance.

High precision transmission, help the equipment to operate efficiently.
Low noise operation, improve the working environment comfort.
IP65 protection grade, 90 degrees continuous operation, suitable for harsh working conditions.

Automatic Lubrication System

The mechanical core transmission components of the laser cutting machine, such as guides, racks, etc., are equipped with a fast lubrication system without blind spots. The control method of equipment operation is used before refueling, which avoids the non-uniformity of static refueling and greatly improves the lubrication efficiency and quality.

Self-centering Chuck

With advanced gear transmission mode, self-centering electric chuck with gear transmission system improves transmission efficiency, long service life and high operational reliability.

Handle

The laser cutting handle adopts the BOCHU brand and is equipped with the Cyput system to ensure efficient and accurate cutting process. Easy to install, compatible with multiple brands of cutting systems, durable and stable, enhancing ease of use.

Control System

Raymax open fiber laser cutting machine adopts advanced Fscut control system to bring efficient, accurate and intelligent cutting experience. The Fscut system has intelligent parameter adjustment, real-time monitoring and user-friendly interface, convenient operation, excellent performance, to meet a variety of cutting needs.

1. FSCUT 2000

Orientation: Economical, suitable for sheet cutting
Power range: 1-4kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Support for” fast cutting “and” smooth micro-joint “;
Automatic edge finding function;
Compatible with a variety of laser cutting heads and servo drivers;
Supports cutting of various materials (carbon steel, stainless steel, aluminum alloy, etc.)
Application scenario: Small business or startup

2. FSCUT 3000

Orientation: Medium power, support more automation functions
Power range: 1.5-6kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics :
Supports integration of multiple laser heads and cutting tools
Provides higher cutting speed and accuracy
Support auto focus, automatic edge finding, intelligent path optimization
Increased anti-jamming capability
Application scenario: Medium-sized enterprise

3. FSCUT 4000

Orientation: Efficient cutting to support complex tasks
Power range: 1.5-8kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Supports multi-axis linkage and high-precision motion control
Provides complex cutting paths and high-speed cutting
Supports auto focus, automatic edge finding, intelligent layout and path optimization
Supports remote monitoring and diagnostics
Application scenario: Medium and large enterprises

4. FSCUT 5000

Orientation: High power, focus on thick plate cutting
Power range: More than 8kW
Hardware architecture: Advanced EtherCAT bus technology
Functional characteristics:
Designed for thick plate cutting
Supports high power laser devices
Provides autofocus, automatic edge finding, intelligent path optimization, and dynamic punching
Strong anti-interference ability to ensure stability in high power environment
Application scenario: Large enterprise

5. FSCUT 6000

Orientation: Medium and high power, support multi-material processing
Power range: 6-15kW
Hardware architecture: Based on EtherCAT bus technology
Functional characteristics:
Support a variety of cutting modes, suitable for a variety of material processing
Provides autofocus, automatic edge finding, and path optimization
Supports remote monitoring and diagnosis
Efficient cutting speed and precision
Application scenario: Medium and large enterprises

6. FSCUT 8000

Orientation: Ultra-high power for complex tasks
Power range: Over 8kW
Hardware architecture: Using EtherCAT bus technology
Functional characteristics:
Designed for ultra-high power laser equipment
Supports thick plate and complex cutting tasks
Provides autofocus, automatic edge finding, intelligent path optimization, and dynamic punching
Strong anti-interference ability and system stability
Application scenario: Large enterprise

Cutting Head

Raymax cutters lead the industry with RayTools BM110, BM111, BS04K and BM06K cutting heads across the line, providing superior low-power cutting performance.
The high power series is equipped with with Boci BLT 3 series, BLT 4 series, BLT 6 series, BLT 8 series cutting heads, which support strong cutting capacity up to 40kW.
Whether it is precision machining or thick plate cutting, Raymax can bring you efficient and stable solutions to help efficient, accurate and stable machining experience!

RayTools BM110

RayTools BM111

RayTools BS04K

RayTools BM06K

Boci BLT-4

Boci BLT-6-Series

Fiber Laser Generator

Raymax cutting machine supports the selection of MAX, IPG and RAYCUS three brand laser generators to meet different customer needs.
Whether it’s the cost performance of MAX, the cutting power of IPG, or the flexibility and efficiency of RAYCUS, Raymax offers you a variety of options to help you achieve high quality machining!
