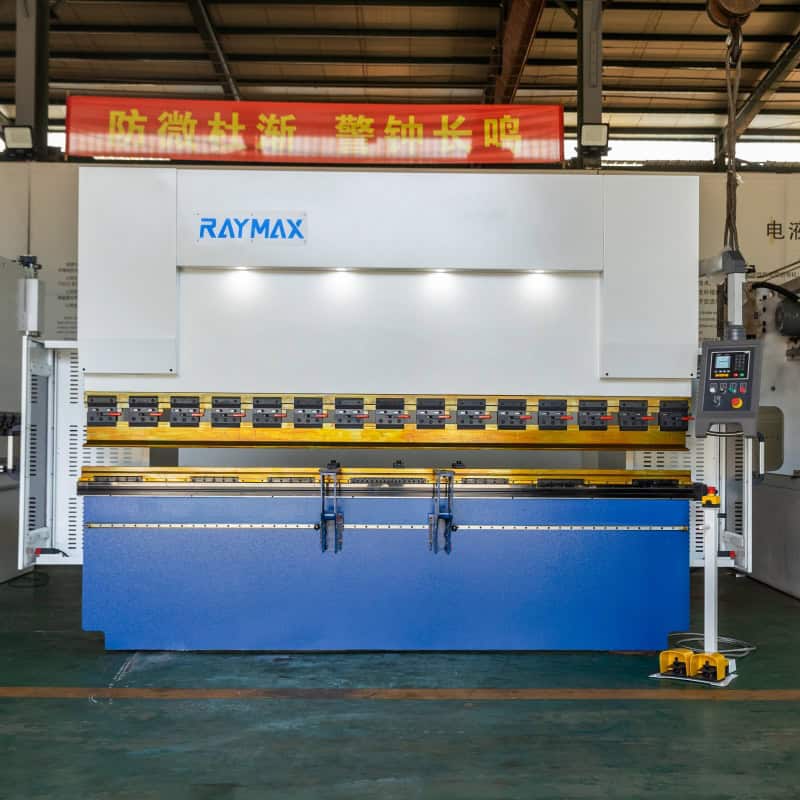

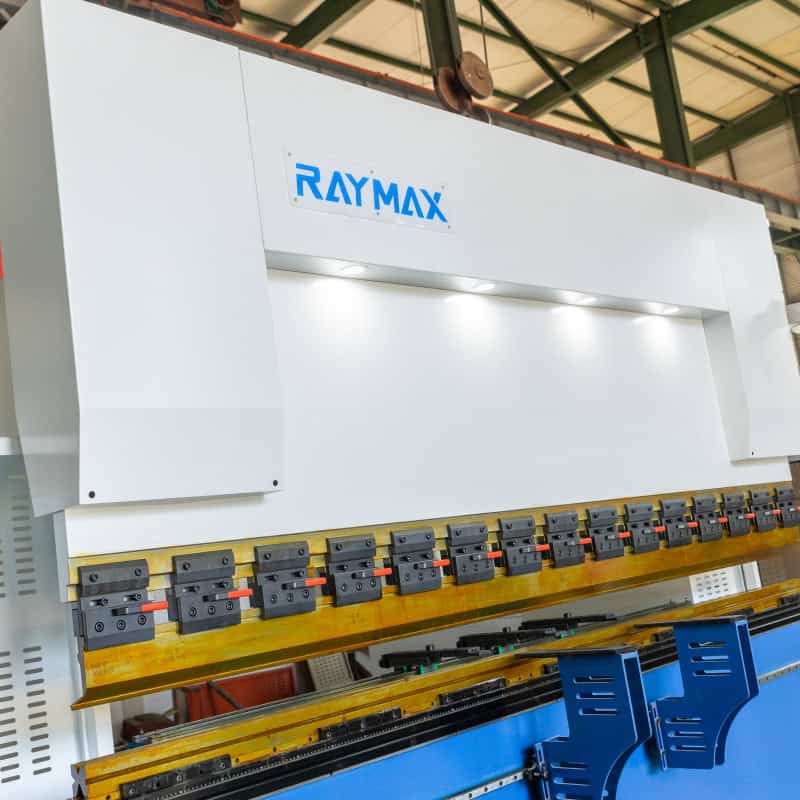

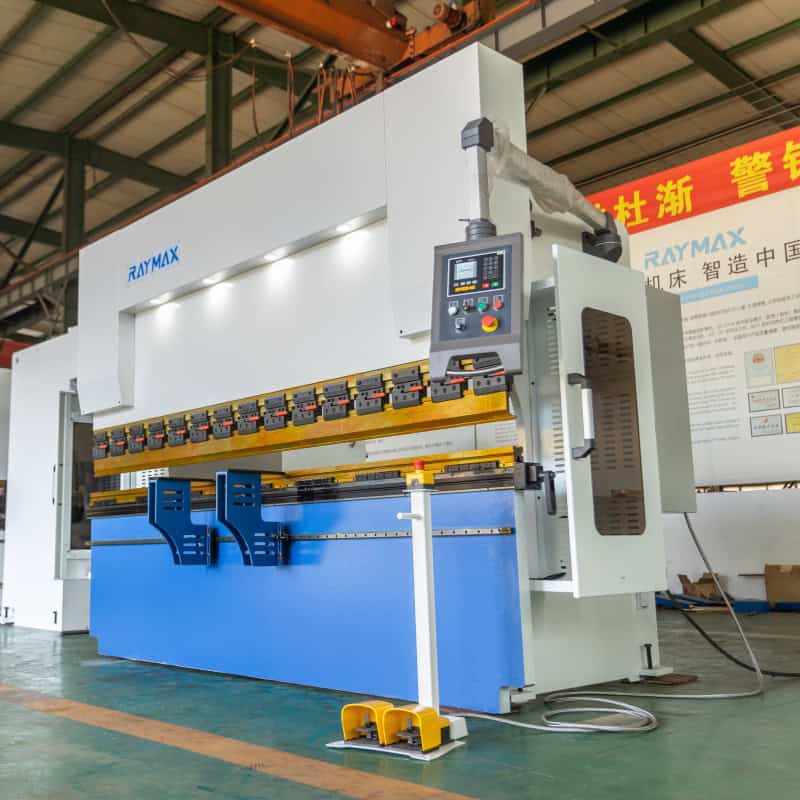

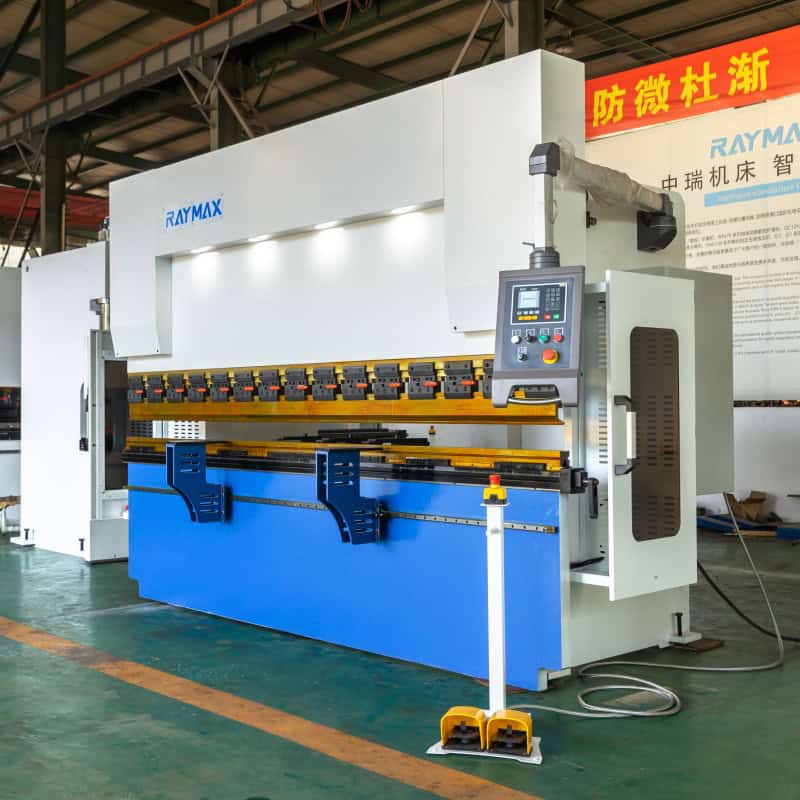

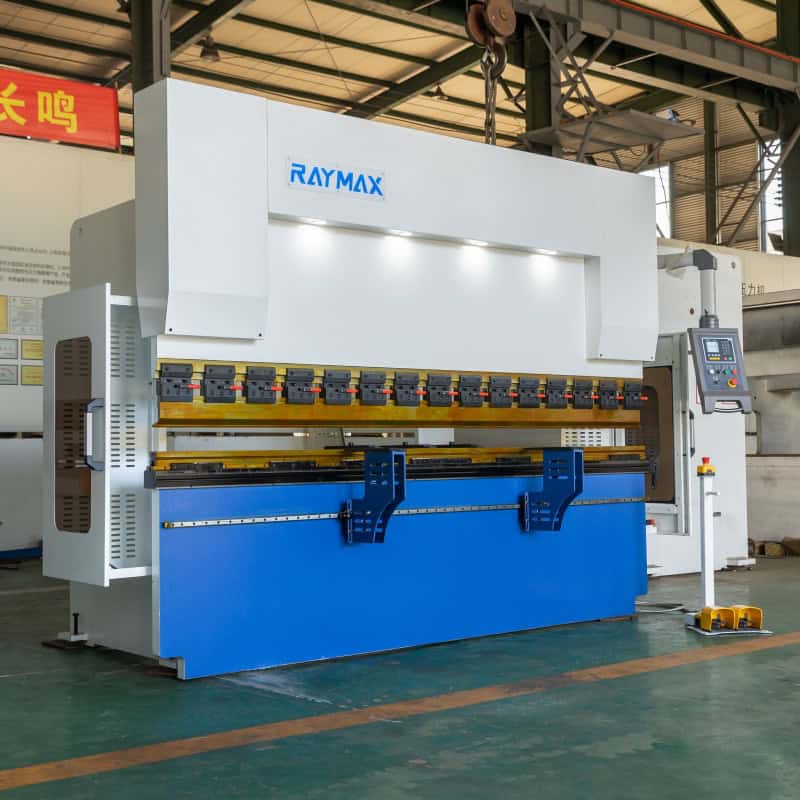

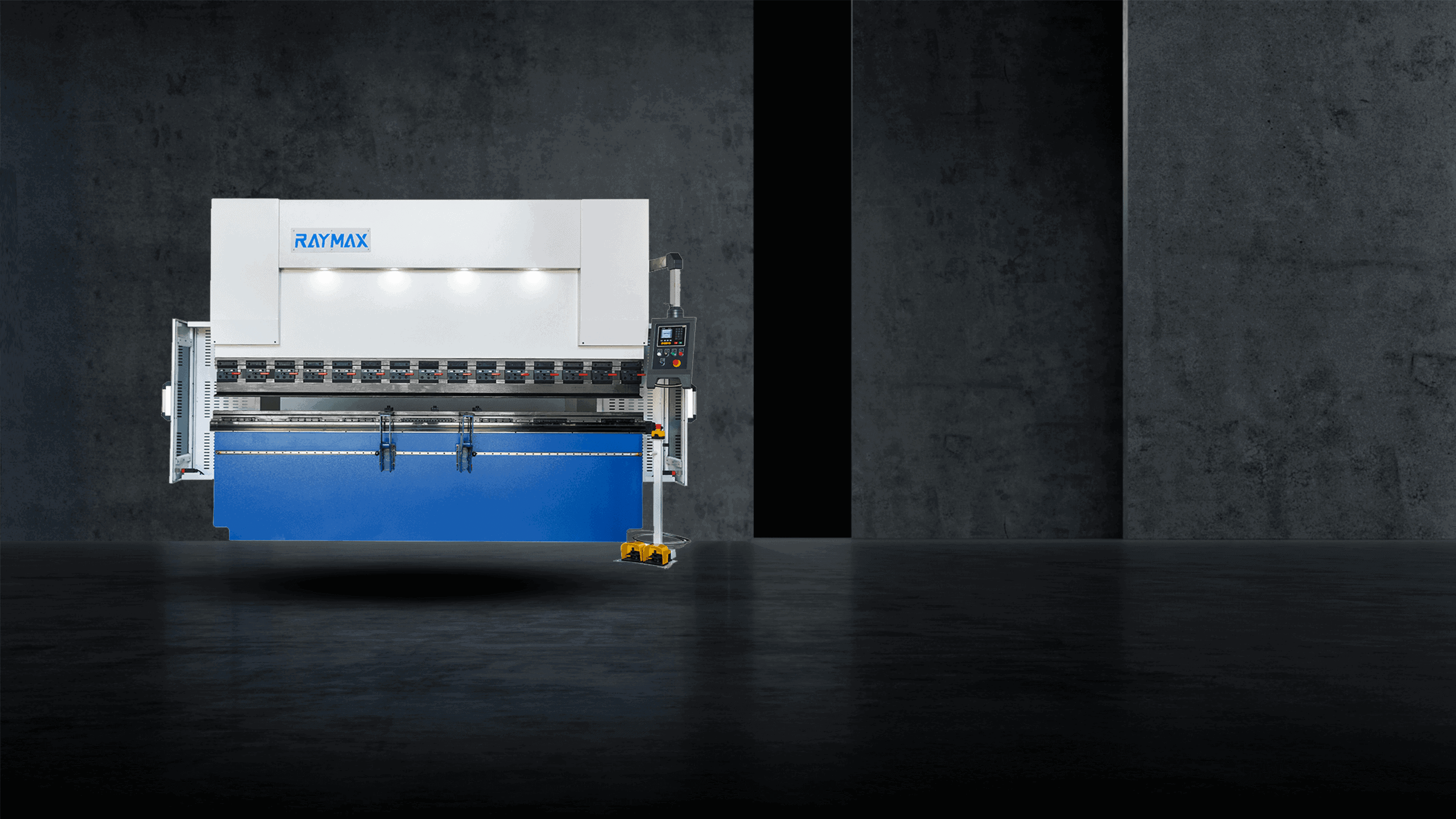

RX-N Series CNC press brake is a high performance hydraulic sheet metal press brake with easy to use control unit (E21 controller), robust body frame, perfect design, high efficiency, multiple tool use solutions, top CE safety standards, etc.
Main Motor Siemens Germany brand
Pump First USA brand
Hydraulic Valve BOSCH-REXROTH Germany brand
Ball Screw& Linear guide Hiwin Taiwan brand
Foot Pedal Pizzato Italy brand
Electrical Schneider France brand
Fast Clamping
Contact us or request a demo
Fill in the form below and our team will be happy to assist you
RX series NC sheet metal press brake are stable, easy to install, easy to operate, easy to maintain and highly competitive factory prices, which is the first choice of most customers. They are suitable for sensitive bending and energy saving solutions.
Features

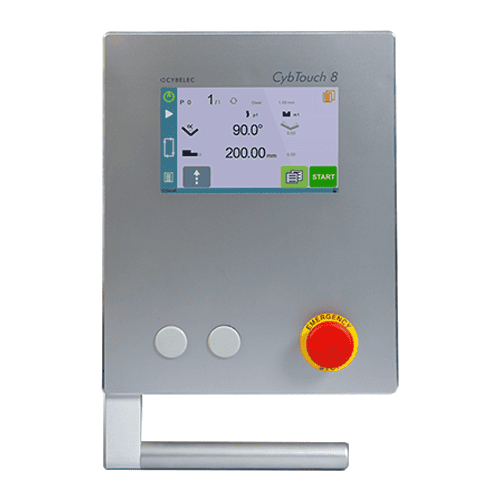

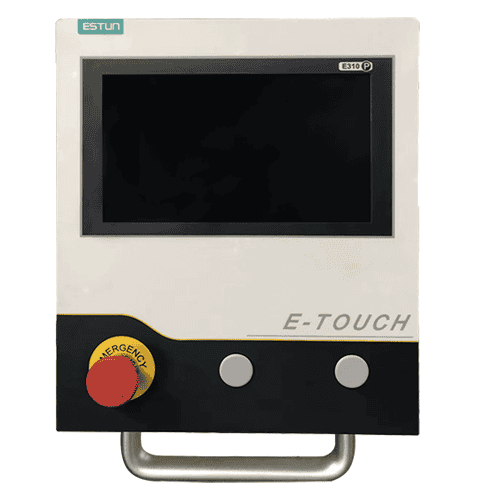

Wide compatibility: Support for a variety of dedicated control systems, such as E21, E310P and CT8, flexibility to adapt to different needs.
Intelligent programming: With multi-step programming function, to achieve automatic execution and continuous positioning, easy to complete the adjustment of the stopper and slider position.
Real-time monitoring: The bending count function displays the number of processing times in real time, and automatically remembers the slider position, program and parameters when the power is off, ensuring wordless operation.
High precision positioning: The rear gauge adopts imported ball screw and linear guide rail to provide excellent positioning accuracy and machining accuracy.
Reliable design: The torsion bar is synchronized with the mechanical stop to ensure reliable, economical and efficient equipment.
Convenient adjustment: The distance of the rear gauge and the stroke of the upper slider can be automatically or manually adjusted by the numerical control system, simple operation in order to improve work efficiency!
The overall rigidity of the mechanical frame is improved, the stress is evenly distributed, and the robust structure reduces the risk of failure of the machine and enhances the stability and durability of the machine.
High-strength steel manufacturing
Each pressure brake is designed with a high-strength steel structure, ensuring that our pressure brake can withstand the high loads of the hydraulic system without deformation over the years.
ANSYS finite element analysis
Utilizes ANSYS finite element analysis to evaluate the main components of the frame, ensuring the overall precision of the machine.
Dual Hydraulic Cylinders
Efficient and smooth
The dual hydraulic cylinders on both sides of the ram provide faster approach speed, smooth thrust, significantly reduce production noise and vibration, improve work efficiency and machining accuracy, and ensure that the ram positioning accuracy is within 0.004 “.
Strong adjustability
By adjusting the oil circuit and pressure, the hydraulic system can flexibly control the thrust and speed, adapt to the processing needs of different materials and thicknesses, and ensure the accuracy of bending Angle and shape.
Wide Frame Stance
Open Design
The wide frame of the RAYMAX punching machine easily adapts to the requirements of deep bending and long molds.
Deeper throat depth
Capable of handling larger workpieces.
Larger daylight opening
Increases operational flexibility and ease of clamping.
Longer stroke length
Supports deeper bending for various tasks.
External RAM direction
Maximizes the spacing between side frames to accommodate deep part flanges.
— The above 11 standard equipment is the core component of our press brake, covering all aspects from the power system, hydraulic system, operation auxiliary device, together to ensure the efficiency, accuracy and stability of the press brake operation, suitable for various industrial production needs. —

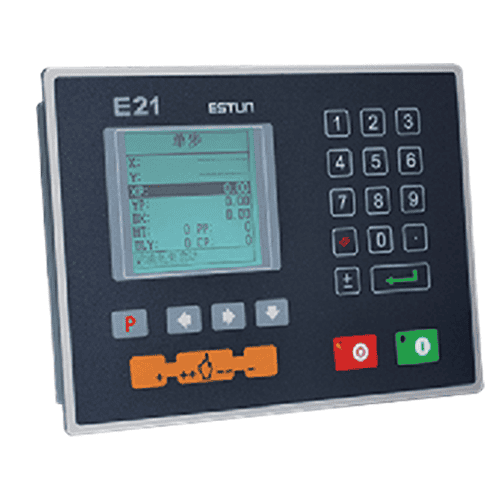

ESTUN E21 NC system
Our 2-axis sheet metal press brakes use the ESTUN E21 NC system, an affordable solution designed for small workshops and businesses.
Key Features:
ESTUN E21 has a simple and easy-to-use display interface, support Chinese and English bilingual, equipped with high-definition LCD screen, clear parameter display, rear table position resolution of 0.05mm.
Provide X, Y axis intelligent positioning and manual adjustment, spindle allowance offset and other functions to ensure bending accuracy.
The system supports bending angle and backgauge position programming, and can store up to 40 programs, each program contains up to 25 steps, suitable for beginners to quickly get started and meet the needs of small production.
The system design is robust and durable, low maintenance cost, widely used in metal processing and light industrial manufacturing industries
Back Gauge
Independently designed high-precision back stop assembly, equipped with HIWIN high-precision ball screw, support the adjustment of the finger and manual lifting function, can adapt to a variety of different punches and workpiece needs, high precision, fast speed, good stability, positioning accuracy of 0.02
Supports forward and backward movement of the X-axis and manual left and right movement of the Z-axis to accommodate complex workpieces processing.
Highly flexible,suitable for diverse varieties and small batch production.
Germany Bosch Rexroth Hydraulic System
Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements.
Energy-efficient and operates smoothly.
Durable hydraulic components suitable for long-term high-load work.
Raymax uses German brand Siemens motor, which can effectively save 40% energy, improve the overall working efficiency of the slider by about 20%, and reduce the oil temperature to 20℃. In addition, we provide customized solutions for machine power and voltage to meet local specific voltage requirements.
Siemens motor design and manufacturing technology are advanced, with high performance and stable operation.
Applicable to various harsh working environments, effectively reducing failure rate and maintenance costs.
Siemens motor has a complete service network, 24h technical service and after-sales support to ensure that our press brakes are always in the best condition.
Reduce energy consumption and extend the service life of equipment.
Fast Clamp
After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size, greatly improving the efficiency of the assembly line and reducing the production downtime.
Simple operation with reliable clamping.
Adapts to various mold types.
Enhances assembly line operation efficiency.
Reduces downtime and improves production continuity.
Front Plate Support
The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the workpiece).
Highly flexible,adapting to different sizes and shapes of workpieces.
Improves bending accuracy and reduces workpiece deformation.
Reduces operator labor intensity.
4V Die
The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness.The mold can also be used in conjunction with semicircular notches to meet various bending needs.
Strong multifunctionality,with one mold satisfying multiple bending requirements.
Made from high-strength materials,ensuring a long service life.
Reduces mold change frequency and improves production efficiency.
The mechanical compensation workbench eliminates the impact of slide deformation on bending accuracy through multi-point compensation or manual deflection compensation.By adjusting the protrusions at each position of the workbench,angular errors at different positions of the workpiece can also be corrected.
Simple operation,adaptable to workpieces of varying thicknesses.
Enhances bending accuracy and reduces scrap rates.
Finger Block
Press Brakes generally have multiple finger blocks, which are point contact and can circumvent the problem of insufficient plate straightness. The finger blocks can move smoothly on the linear guide and can also be adjusted up and down, characterized by convenience, efficiency and ease of control. The finger blocks are required to change position frequently in the work of the press brake in order to realize different lengths of sheet metal bending.
Foot Switch
Raymax uses Italian PIZZATO brand foot switches for starting and stopping the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.
PIZZATO brand foot switches have ergonomic design, simple and comfortable operation, and reduce fatigue caused by long-term operation.
PIZZATO brand foot switches have high-level protection configuration, effectively resisting the intrusion of dust and liquids, and are suitable for various harsh working environments.

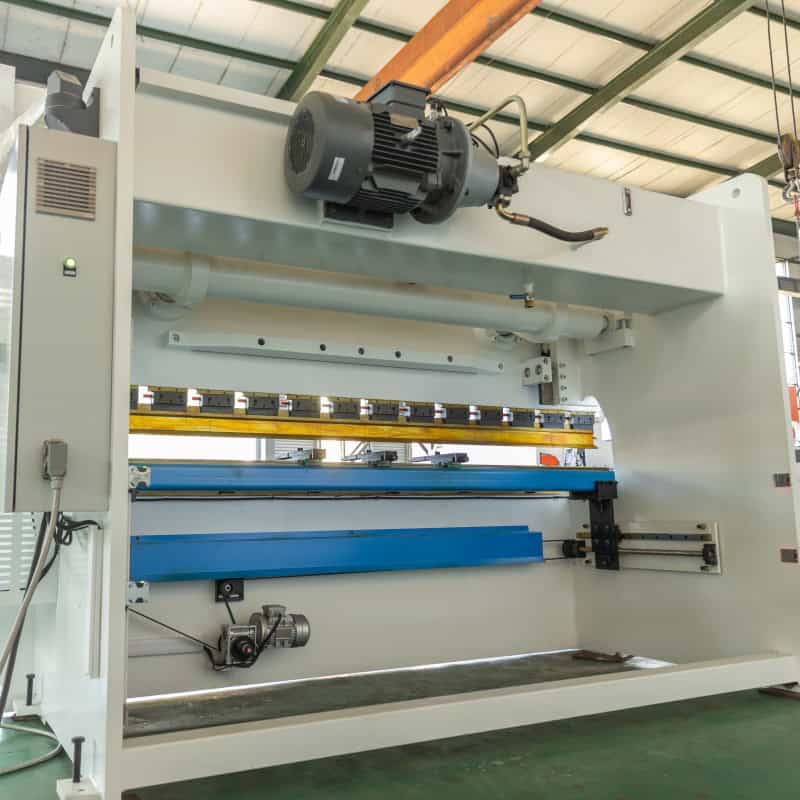

Torsion bar synchronization System
We use high-precision steel torsion bar synchronization system, the system slider is equipped with two synchronization devices at both ends, to ensure that the slider movement is always parallel to the table, effectively reduce the error in the movement of the machine, to ensure the bending accuracy.
Pack 1
Pack 2
Deliver goods1
Deliver goods2
Deliver goods3
Deliver goods4
Great machine tools, fair price !
Contact us now to get a quote and a free solution!
Global Technical Support
Germany Bosch Rexroth Hydraulic System
High Precision Oil Cylinder
Schneider Electrical Components
One-Time Forming, Precision Manufacturing
Low-Noise Back Positioning Technology
Mechanical Deflection Compensation
Versatile Standard Molds in Various Specifications
Contact us or request a demo
Fill in the form below and our team will be happy to assist you

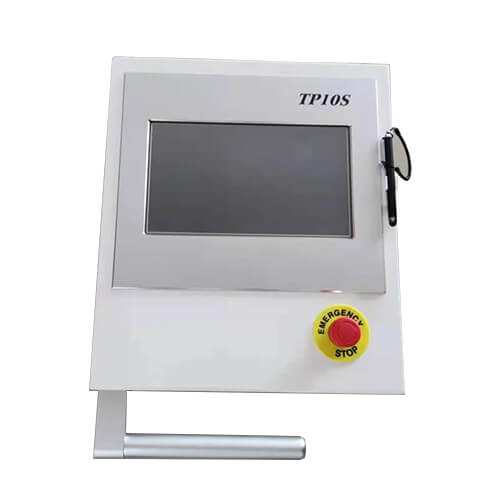

Upgrade Solutions
